Filtration and indication
Choose 10M for 10 µm or 25M for 25 µm. VI specifies the visual clogging indicator; the catalogue references VI-R-1015-SB.
Products / Yuken hydraulic products / Hydraulic filters and elements / YTTRF Series Tank Top Return Line Filters
Yuken Hydraulic filters and elements

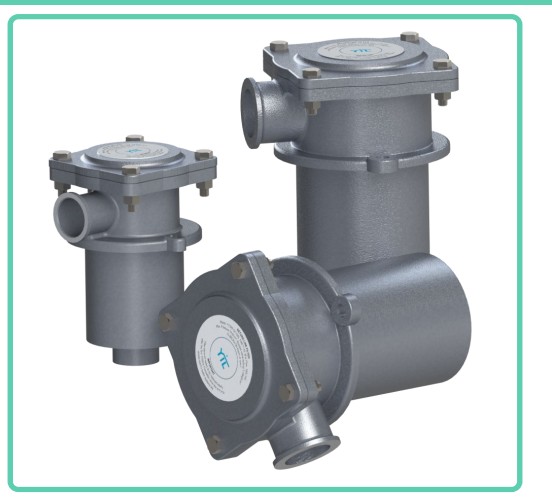

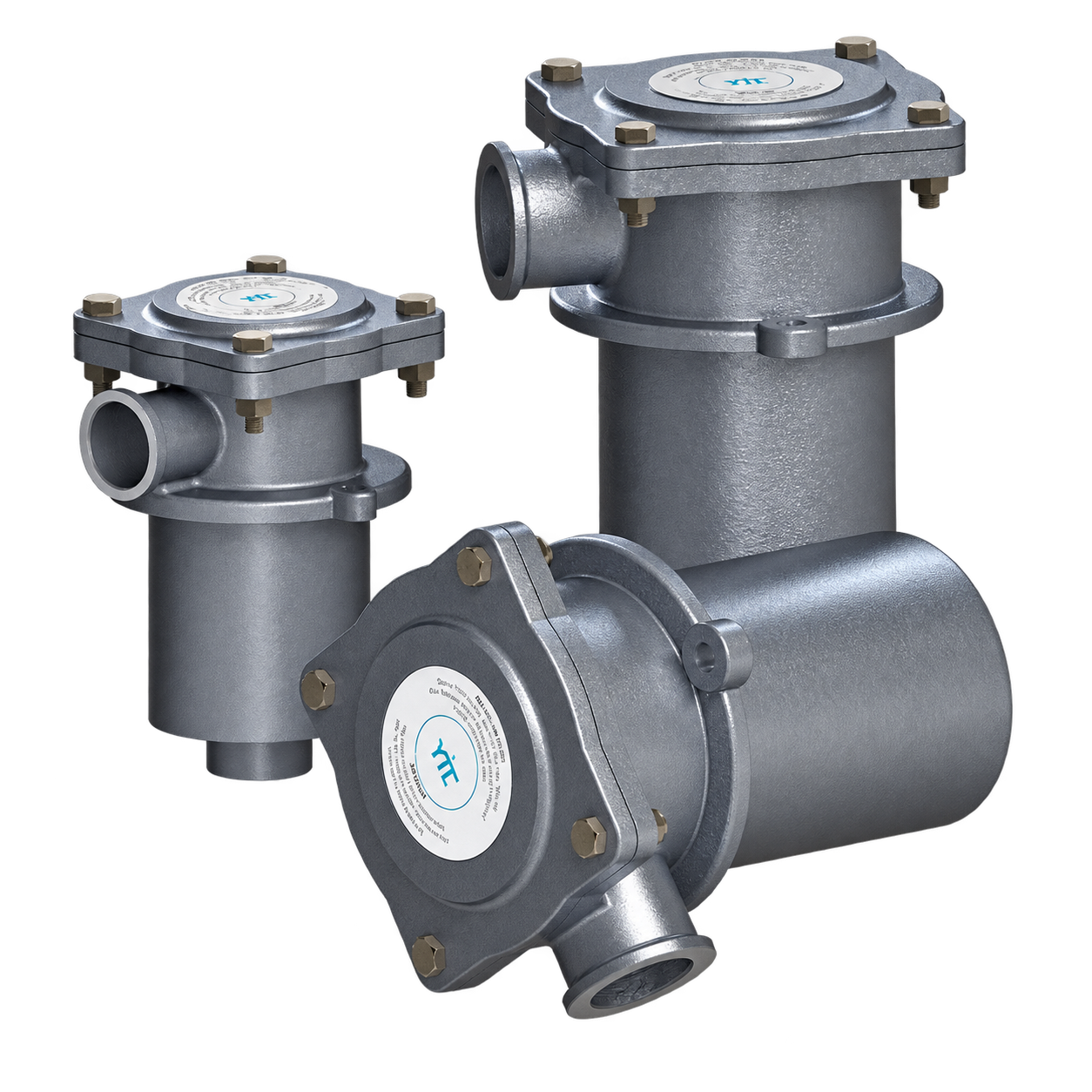

YTTRF Series Tank Top Return Line Filters
Tank-top return filters in four flow sizes with 10 µm or 25 µm paper elements.
4 sizes50, 115, 160 and 240 L/min
7 kgf/cm²Maximum working pressure
80 °CMaximum operating temperature
10 / 25 µmElement ratings
Function and model selection
YTTRF filters mount directly on the tank top. The catalogue lists an impregnated paper element, ceramic magnets in the filter head and a bypass check valve set at 1.05 kgf/cm² (15 psi).
The inlet and outlet connections are not identical on every size. Check the installation drawing and tank cut-out, not only the nominal inlet size.
Use the catalogue alongside the details below, then send the complete model and application requirements for selection support.
Models and specifications
| Model pattern | Flow (L/min) | Inlet port | Approx. mass (kg) |
|---|---|---|---|
| YTTRF-04-50L-*-*-10 | 50 | G 1/2" | 0.58 |
| YTTRF-06-115L-*-*-10 | 115 | G 3/4" | 1.05 |
| YTTRF-08-160L-*-*-10 | 160 | G 1" | 1.30 |
| YTTRF-10-240L-*-*-10 | 240 | G 1 1/4" | 2.40 |
Source: Yuken accessories catalogue, Pub:03-2025, section starting at PDF page 11. Check the complete drawing and model designation before ordering.
Configuration and ordering
Replacement elements
YTTRFE uses size codes 04, 06, 08 and 10, filtration codes 10M or 25M, and design number 10. Match the existing housing.
Selection support
Share the complete requirement
Include the existing model and installation details for a replacement, or the required operating conditions for a new application.
- Complete housing and element model codes
- Required flow, filtration grade and indicator option
- Operating pressure, temperature and hydraulic fluid
- Mounting dimensions and process connections
- Existing component photographs and quantity
