Model designation
In YSS-15G-10, YSS identifies the suction strainer, 15G identifies the 60 L/min size, and 10 is the design number. The size code is not itself the flow rate in L/min.
Yuken suction strainers

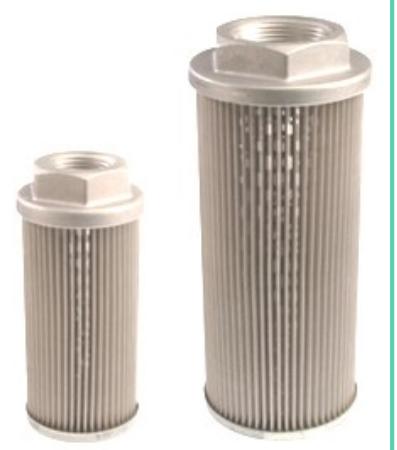

YSS Series Suction Strainers
Suction-line strainers with 15 catalogue sizes, rated from 20 to 800 L/min.
20-800 L/minSize-dependent catalogue flow rates
80 °CMaximum working temperature
100 meshStandard mesh, 149 µm
15 sizesYSS-5G-10 to YSS-200G-10
Function and model selection
YSS strainers capture contaminants in the pump suction line. The catalogue describes installation at the suction port or submerged in the tank on the line leading to the pump.
Select the model by the required flow, port thread and installation space. The catalogue specifies petroleum and mineral-based oils, a standard 100 mesh rating and a maximum working temperature of 80 °C.
Confirm the complete model designation and operating conditions before ordering. A suction strainer is a different product from a pressure-line or return-line filter.
YSS model comparison
| Model | Flow rate (L/min) | Port size C | Diameter A (mm) | Length B (mm) |
|---|---|---|---|---|
| YSS-5G-10 | 20 | G 1/2 | 47 | 105 |
| YSS-7G-10 | 30 | G 3/4 | 65 | 109 |
| YSS-10G-10 | 40 | G 1 | 65 | 139 |
| YSS-13G-10 | 50 | G 1 | 65 | 158 |
| YSS-15G-10 | 60 | G 1 1/4 | 87 | 139 |
| YSS-16G-10 | 65 | G 1 | 65 | 170 |
| YSS-20G-10 | 80 | G 1 1/2 | 87 | 168 |
| YSS-30G-10 | 120 | G 1 1/2 | 87 | 200 |
| YSS-40G-10 | 160 | G 2 | 101 | 235 |
| YSS-50G-10 | 200 | G 2 | 101 | 260 |
| YSS-65G-10 | 250 | G 2 | 101 | 287 |
| YSS-75G-10 | 300 | G 2 1/2 | 151 | 211 |
| YSS-100G-10 | 400 | G 3 | 151 | 272 |
| YSS-150G-10 | 600 | G 3 | 151 | 345 |
| YSS-200G-10 | 800 | G 3 | 151 | 405 |
Source: Yuken YUS-I-028 06, Pub:03-2025, catalogue page 10. Flow ratings vary by size; 800 L/min applies to YSS-200G-10. Refer to the catalogue drawing for across-flat dimensions and installation checks.
Configuration and ordering
Connection and clearance
Match the G-thread port and check diameter A and length B against the available tank space. Share the existing strainer photograph and complete code for replacement selection.
Selection support
Send your suction-strainer requirement
Provide the model and operating details so we can help confirm the correct size and connection.
- Complete YSS model or existing part photograph
- Required flow rate and pump details
- Port thread and available tank space
- Hydraulic fluid and operating temperature
- Required mesh rating
- Quantity and delivery location
Manufacturer catalogue
Open the YSS specifications and dimensional drawing in the accessories PDF hosted on Shree Hydraulics.
