Plug-in connector
The manufacturer specifies a connector conforming to DIN 43650 / ISO 4400. The spare DIN connector reference is HD-309/S.
Yuken hydro-electric pressure switches

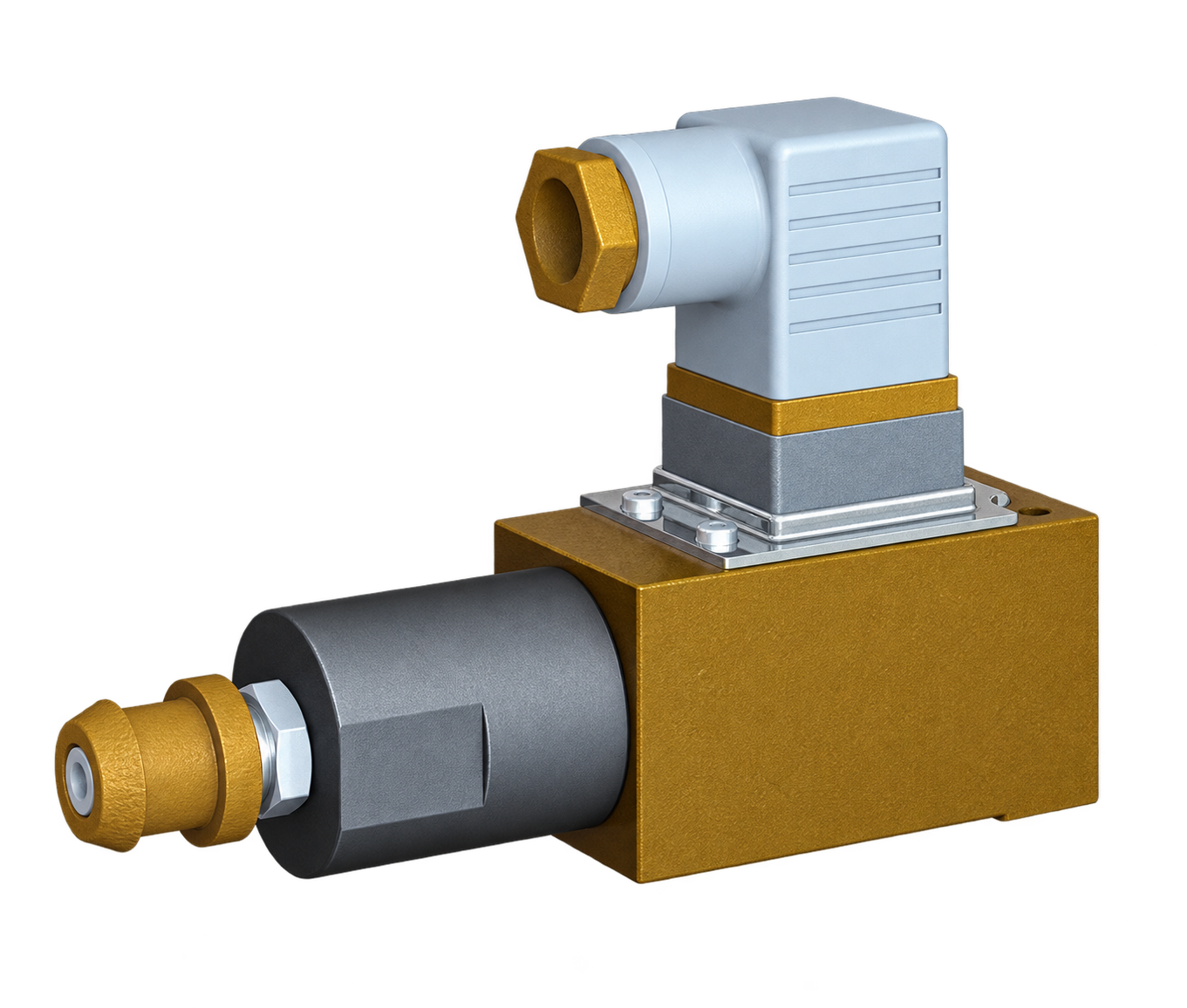

YSG hydro-electric pressure switches
Choose the pressure range and mounting arrangement for hydraulic pressure switching. Compare YSG-A, B, C and D models before selecting the control-circuit connection.
A / B / C / DFour pressure-range models
5–350 Kgf/cm²Combined setting coverage, model dependent
Sub-plateYSGM-01-10 ordered separately
DIN connectorPlug-in electrical connection
Match the switch to the pressure setting
The YSG hydro-electric pressure switch uses a spring-loaded sealed piston to operate a microswitch at the selected hydraulic pressure. Its encapsulated construction protects the mechanism against dirt.
The range uses sub-plate mounting and a plug-in electrical connector. Each model has its own pressure setting range and maximum operating-pressure rating.
Review the switching-pressure differential curve for the selected model when checking the required switching cycle. The differential varies with the pressure setting.
Compare YSG pressure ranges
| Model | Pressure setting range | Maximum operating pressure |
|---|---|---|
| YSG-A-20 | 5 to 40 Kgf/cm² | 40 Kgf/cm² |
| YSG-B-20 | 12 to 100 Kgf/cm² | 100 Kgf/cm² |
| YSG-C-20 | 20 to 200 Kgf/cm² | 200 Kgf/cm² |
| YSG-D-20 | 30 to 350 Kgf/cm² | 350 Kgf/cm² |
The 350 Kgf/cm² rating applies to YSG-D-20. Select the model for both the required switching pressure and the maximum pressure at the switch connection.
Electrical connection and switching
Contact selection
The catalogue shows common, normally open and normally closed microswitch contacts. Use the manufacturer’s connection diagram to match the required action above and below the pressure setting.
Send the supply voltage, load current and control-circuit details for electrical suitability confirmation. Check the connection diagram and the selected switch’s contact rating before wiring.
Sub-plate and mounting details
| Item | Catalogue reference |
|---|---|
| Mounting | Sub-plate mounting |
| Sub-plate | YSGM-01-10, ordered separately |
| Sub-plate piping size | 1/4” BSP.F |
| Sub-plate mass | 0.24 Kg. |
| Mounting bolts | M5 x 50Lg., 2 |
| Bolt kit | BK-YSG-01-20 |
| Design number | 20 |
Check the complete mounting interface and installation dimensions in the catalogue. Include the separate sub-plate requirement in the enquiry.
Model and spare-part identification
Special seals
An F prefix identifies special seals for phosphate ester type fluids. Consult Yuken before ordering this configuration and share the fluid details.
Seal kit
The catalogue lists KS-YSG-20 as the seal kit reference. Send the existing model code and required part details for confirmation.
Selection support
Send the switching requirement
Share the required pressure setting and electrical action so the range and connection requirements can be reviewed together.
- Full YSG model code and quantity
- Required switching pressure and maximum circuit pressure
- Required action as pressure rises and falls
- Supply voltage, load current and control-circuit drawing
- Fluid and mounting details
- Sub-plate, connector or spare-part requirement
YSG pressure-switch catalogue
Review pressure ranges, switching differential curves, connection diagrams and mounting dimensions.
Enquire about YSG pressure switches
Send your model and application details to Shree Hydraulics in Belagavi for product selection and quotation enquiries across India.
