Filter assembly
Use YRF when enquiring about the head and canister assembly. Send the mounting-face dimensions for an existing installation.
Products / Yuken hydraulic products / Hydraulic filters and elements / YRF Series Spin-on Return Line Filters
Yuken Hydraulic filters and elements
YRF Series Spin-on Return Line Filters
Sub-plate-mounted return filtration with a disposable paper-element canister and a nominal flow capacity of 40 l/min.
40 l/minNominal flow capacity
7 kgf/cm²Maximum working pressure
25 µmPaper-element filtration
Ø16 mmPort size
Function and model selection

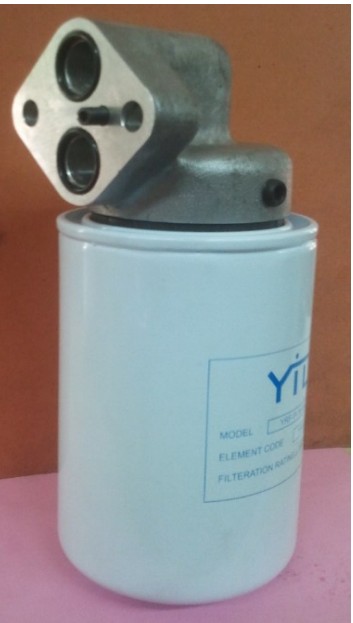

The YRF assembly combines a sub-plate-mounted filter head with a spin-on disposable canister. The catalogue lists an inbuilt bypass valve and suitability for petroleum and mineral-based oils.
Confirm the indicator connection and complete assembly code. The canister is ordered separately using its YRFE designation when only a replacement is required.
Use the catalogue alongside the details below, then send the complete model and application requirements for selection support.
Models and specifications
| Selection field | Catalogue reference |
|---|---|
| Model pattern | YRF-P-16-M-25-*-10 |
| Element media | P: Paper |
| Mounting | M: Sub-plate mounting |
| Filtration rating | 25: 25 µm |
| Clogging indicator | VI: With visual indicator; omit for without |
| Approximate mass | 1.2 kg |
Source: Yuken accessories catalogue, Pub:03-2025, section starting at PDF page 8. Check the complete drawing and model designation before ordering.
Configuration and ordering
View individual products: YRF-P-16-M-25-10 without visual indicator or YRF-P-16-M-25-VI-10 with visual indicator.
Canister replacement
The catalogue identifies the spin-on canister as YRFE. Confirm the media, thread and filtration rating before selecting a spare.
Selection support
Share the complete requirement
Include the existing model and installation details for a replacement, or the required operating conditions for a new application.
- Complete housing and element model codes
- Required flow, filtration grade and indicator option
- Operating pressure, temperature and hydraulic fluid
- Mounting dimensions and process connections
- Existing component photographs and quantity
Manufacturer catalogue
Open the YRF Series Spin-on Return Line Filters reference in the PDF hosted on Shree Hydraulics.
