Mounting plate
F is the panel-plate option for FB; S is the plate option for SB. The catalogue explicitly excludes the crossed combinations SB-F and FB-S.
Yuken Gauges and pressure switches

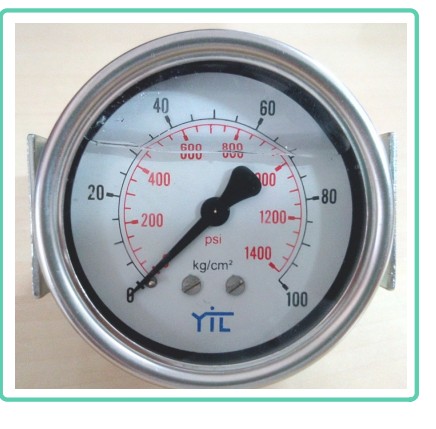

YPG Series Pressure Gauges
Glycerin-filled hydraulic pressure gauges with 63 mm or 100 mm dials and back-entry or bottom-entry connections.
63 / 100 mmDial sizes
1.6% FSDCatalogue accuracy
0-400 kgf/cm²Highest listed scale range
FB / SBConnection orientations
Function and model selection
YPG gauges use a mechanical Bourdon tube and a glycerin-filled case. Choose the dial size, scale range, process thread and mounting arrangement as separate parts of the model code.
Choose a scale suitable for the application. The highest available dial range is not a blanket recommended operating pressure for every gauge.
Use the catalogue alongside the details below, then send the complete model and application requirements for selection support.
Models and specifications
| Option | Catalogue selection |
|---|---|
| Dial size | 63: Ø63 mm; 100: Ø100 mm |
| Pressure-range upper limits (kgf/cm²) | 16, 25, 40, 60, 70, 100, 140, 160, 210, 250, 280, 400 |
| YPG-63 connections | G01: G1/8; G02: G1/4 |
| YPG-100 connections | G02: G1/4; G03: G3/8; G04: G1/2 |
| FB | Face mounting, back entry |
| SB | Surface mounting, bottom entry |
| Scales | Outside: kgf/cm²; inside: psi |
Source: Yuken accessories catalogue, Pub:03-2025, section starting at PDF page 2. Check the complete drawing and model designation before ordering.
Configuration and ordering
Replacement identification
A clear dial photograph and view of the process connection help confirm pressure range, dial diameter, thread and entry direction.
Selection support
Share the complete requirement
Include the existing model and installation details for a replacement, or the required operating conditions for a new application.
- Complete instrument model and a nameplate photograph
- Required range, accuracy and measurement function
- Connection thread, mounting and orientation
- Electrical requirements where applicable
- Quantity and delivery location
