Length selection
Match the existing mounting dimensions rather than using overall length alone. The 250 size uses a different bolt size from the smaller models.
Yuken Hydraulic accessories

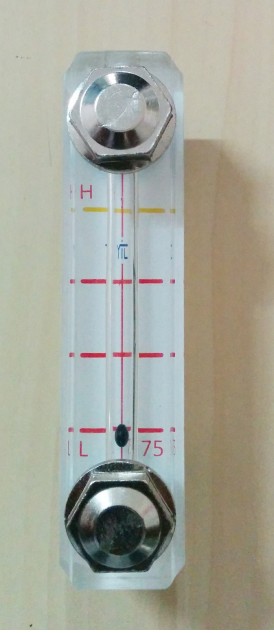

YLG Series Oil Level Indicators
Float-equipped oil level indicators for non-pressurised hydraulic tanks, in four mounting lengths.
4 sizes75, 100, 125 and 250
80 °CMaximum operating temperature
Non-pressurisedTank application
PolycarbonateCatalogue body material
Function and model selection
YLG indicators display the oil level through a polycarbonate body with an inbuilt float. The catalogue lists suitability for petroleum and mineral-based oils.
A and L refer to the catalogue drawing. Confirm mounting centres, tank-wall thickness and sealing arrangement. These indicators are specified for non-pressurised tanks.
Use the catalogue alongside the details below, then send the complete model and application requirements for selection support.
Models and specifications
| Model | A (mm) | Overall L (mm) | Bolt size | Approx. mass (kg) |
|---|---|---|---|---|
| YLG-75-10 | 75 | 105 | M10 | 0.09 |
| YLG-100-10 | 100 | 130 | M10 | 0.095 |
| YLG-125-10 | 125 | 155 | M10 | 0.100 |
| YLG-250-10 | 250 | 290 | M12 | 0.380 |
Source: Yuken accessories catalogue, Pub:03-2025, section starting at PDF page 1. Check the complete drawing and model designation before ordering.
Configuration and ordering
Replacement details
Send the complete code, bolt-centre measurement, tank-wall details and a photograph of the installed indicator.
Selection support
Share the complete requirement
Include the existing model and installation details for a replacement, or the required operating conditions for a new application.
- Complete model code and component photographs
- Required function and system operating conditions
- Mounting dimensions and connections
- Fluid, temperature and pressure where applicable
- Quantity and delivery location
