Confirm the complete unit code
Select pump, pressure setting, reservoir and motor together using the catalogue model table. The family prefix alone does not define the operating flow, pressure or electrical requirements.
Yuken variable vane-pump units
YIV Series standard power packs
Standard hydraulic power packs with SVPF or RV20 variable displacement vane pumps.
SVPF / RV20Pump families
VariableVane-pump displacement
4 prefixesYIV model families
Catalogue matchedTank and motor selection
Function and model selection
The YIV family provides variable displacement vane-pump configurations. Use the exact pump option and catalogue combination table to select the reservoir, motor and operating settings.
Standard hydraulic power packs with SVPF or RV20 variable displacement vane pumps.
Use the model comparisons below with the linked manufacturer catalogue. Send the complete designation and application details for selection support.
Model comparison
| Unit prefix | Pump option | Displacement |
|---|---|---|
| YIV-12 | SVPF12 | 6.7 cc/rev |
| YIV-20 | RV20 | 11.3 cc/rev |
| YIV-30 | SVPF30 | 16.7 cc/rev |
| YIV-40 | SVPF40 | 22.2 cc/rev |
The unit prefix is a family identifier, not the displacement value. Confirm operating pressure and motor/tank combinations against catalogue pages 5–6 and the required pump configuration.
Configuration and ordering
Manifold and accessory options
Specify the valve circuit and required manifold, oil pan, temperature gauge, float switch or terminal box. Options depend on tank size and unit configuration; use the catalogue option matrix to confirm the combination.
Selection support
Send the complete power-unit requirement
Include the existing unit model or hydraulic circuit, operating requirements and available installation space.
- Complete unit model or hydraulic circuit
- Required flow and operating pressure
- Motor power and electrical supply
- Reservoir, valve and cooling requirements
- Duty cycle and installation dimensions
- Nameplate photograph and quantity
Manufacturer catalogue

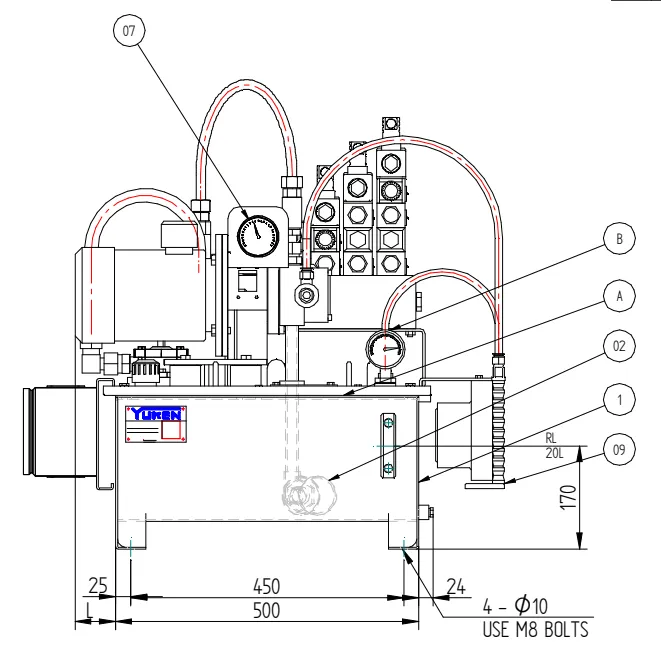

Specifications, model designations, installation drawings and configuration details for YIV Series standard power packs.
Enquire about YIV Series standard power packs
Send your model code and application details to Shree Hydraulics in Belagavi for selection and quotation enquiries across India.
