Tank-top or threaded
Check the bolt-circle pattern for TT or process thread for TM. The mounting interfaces differ between the two air-flow sizes.
Yuken Hydraulic accessories

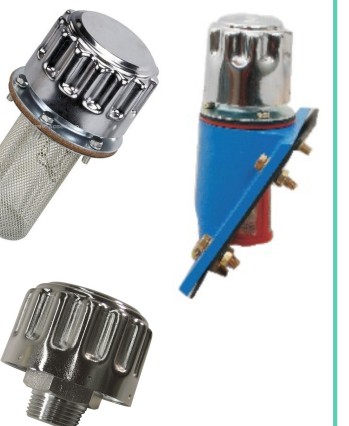

YFB Series Filler Breathers
Reservoir filler breathers with tank-top, threaded and tank-side mounting options.
150 / 700 L/minAir-flow references
40 µmStandard filtration
TT / TM / SMMounting options
SyntheticElement media
Function and model selection
YFB breathers cover the reservoir filler opening and filter incoming air. Select mounting arrangement and air-flow size independently from the hydraulic system's oil-flow requirement.
The 150 and 700 figures identify air flow in L/min, not hydraulic oil flow. Use the applicable TT, TM or SM drawing to confirm mounting dimensions.
Use the catalogue alongside the details below, then send the complete model and application requirements for selection support.
Models and specifications
| Mounting code | Arrangement | Model references |
|---|---|---|
| TT | Tank top | YFB-TT-150-40-10 / YFB-TT-700-40-10 |
| TM | Threaded | YFB-TM-150-40-10 / YFB-TM-700-40-10 |
| SM | Tank side | YFB-SM-150-40-10 / YFB-SM-700-40-10 |
| TM-150 connection | G 1/2 | See threaded mounting drawing |
| TM-700 connection | G 3/4 | See threaded mounting drawing |
Source: Yuken accessories catalogue, Pub:03-2025, section starting at PDF page 14. Check the complete drawing and model designation before ordering.
Configuration and ordering
Tank-side version
SM models have a side-mounting housing. Compare mounting holes and clearance with page 15 of the catalogue.
Selection support
Share the complete requirement
Include the existing model and installation details for a replacement, or the required operating conditions for a new application.
- Complete model code and component photographs
- Required function and system operating conditions
- Mounting dimensions and connections
- Fluid, temperature and pressure where applicable
- Quantity and delivery location
Manufacturer catalogue
Open the YFB Series Filler Breathers reference in the PDF hosted on Shree Hydraulics.
Enquire about YFB Series Filler Breathers
Contact Shree Hydraulics in Belagavi for product selection and quotation enquiries across India.
