Cavity verification
Send the manifold cavity drawing or complete existing valve code. Check page 41 for the machining detail.
Yuken Hydraulic accessories

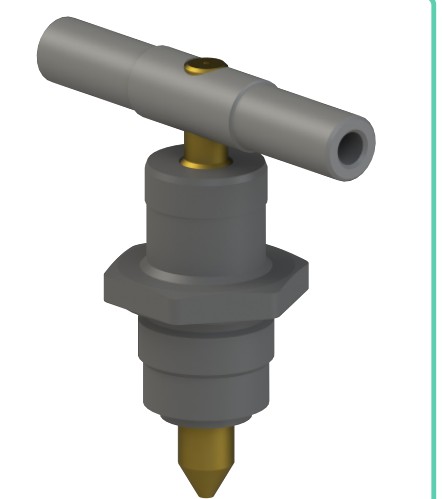

YCSV Series Cartridge Shut-off Valves
Cartridge-mounted shut-off valves with a rising spindle, metal seat and factory-standard mounting cavity.
315 Kgf/cm²Maximum operating pressure
80 °CMaximum operating temperature
0.2 kgApproximate mass
NBRN seal code
Function and model selection
YCSV valves stop or allow flow between inlet and outlet through a cartridge mounting arrangement. Match the cavity to the manufacturer drawing before selecting a replacement.
A cartridge's nominal size does not establish cavity interchangeability. Confirm the exact cavity, sealing surfaces and installation details.
Use the catalogue alongside the details below, then send the complete model and application requirements for selection support.
Models and specifications
| Field | Catalogue reference |
|---|---|
| Model | YCSV-01-N-10 |
| Size | 01 |
| Mounting | Cartridge |
| Cavity | Factory standard, drawing on page 41 |
| Seal designation | N: NBR |
| Design number | 10 |
Source: Yuken accessories catalogue, Pub:03-2025, section starting at PDF page 40. Check the complete drawing and model designation before ordering.
Configuration and ordering
Fluid and duty
The sheet lists petroleum and mineral-based oils. Provide actual fluid, operating pressure and temperature for the enquiry.
Selection support
Share the complete requirement
Include the existing model and installation details for a replacement, or the required operating conditions for a new application.
- Complete model code and component photographs
- Required function and system operating conditions
- Mounting dimensions and connections
- Fluid, temperature and pressure where applicable
- Quantity and delivery location
Manufacturer catalogue
Open the YCSV Series Cartridge Shut-off Valves reference in the PDF hosted on Shree Hydraulics.
