YBG-01 sub-plate
The catalogue lists YBGM-01-1080 with 1/4 BSP.F threads. Include the sub-plate requirement in your enquiry and check the mounting drawing.
Yuken remote control relief valves
YBT-01 and YBG-01 relief valves
Compare threaded and sub-plate remote-control relief valves. Confirm the mounting arrangement and pilot-operated pressure-control valve in your circuit.
Size 01Remote-control relief-valve range
4 L/min.Maximum flow
250 Kgf/cm²Maximum operating pressure
YBT / YBGThreaded or sub-plate mounting
Remote control of pilot-operated pressure valves

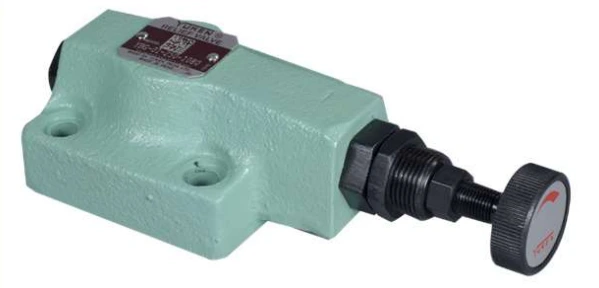

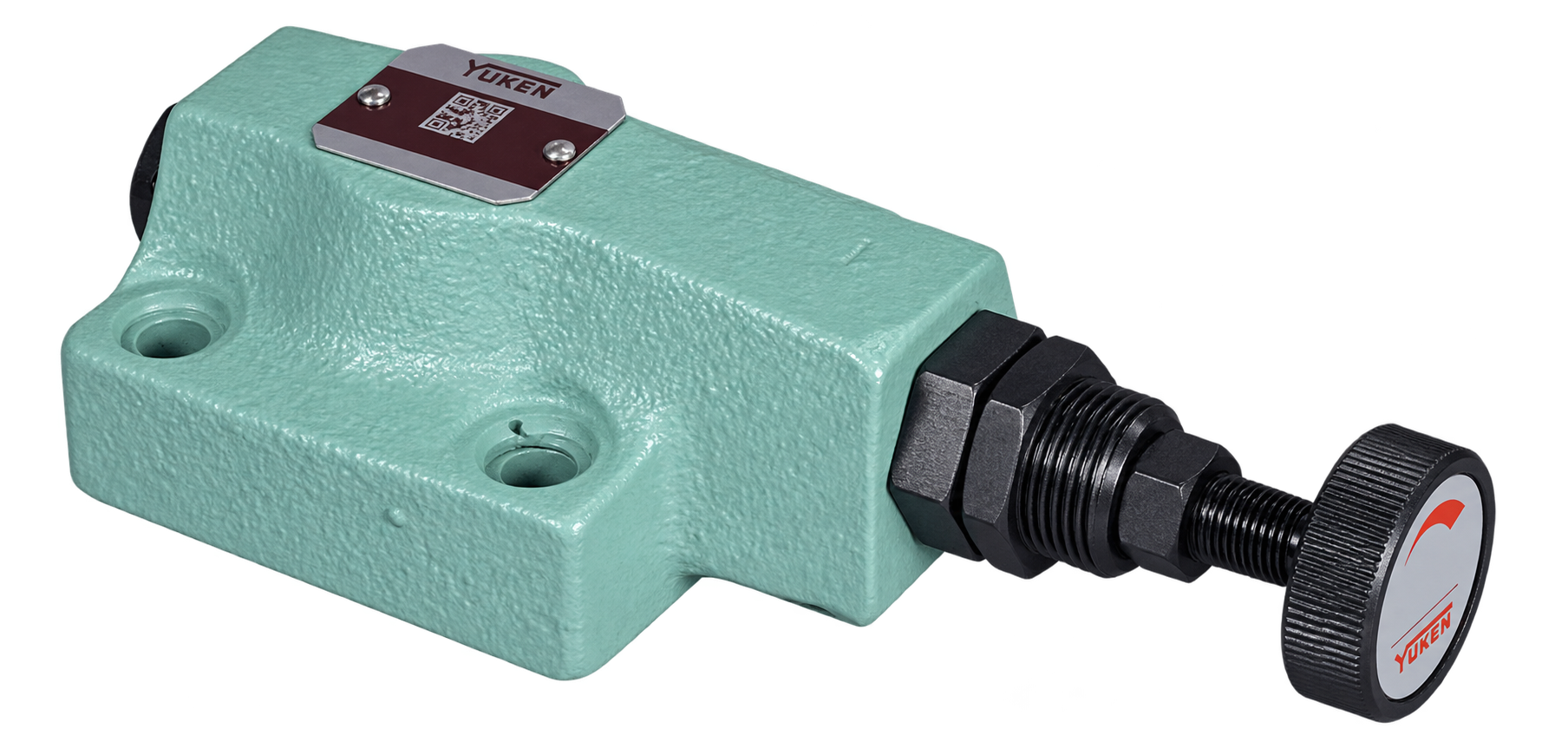

The YB-01 range provides remote pressure control for pilot-operated pressure-control valves. Its adjustment knob allows the pressure setting to be changed and secured with a lock nut.
YBT-01 uses threaded connections, with a panel-mounting option. YBG-01 uses sub-plate mounting. Select the arrangement to suit the circuit and installation space.
This page covers the size 01 remote-control models. The shared catalogue also includes size 02 direct-type relief valves, which have different ratings and model codes.
Compare YBT-01 and YBG-01
| Family | Mounting | Maximum operating pressure | Maximum flow |
|---|---|---|---|
| YBT-01 | Threaded connection | 250 Kgf/cm² | 4 L/min. |
| YBG-01 | Sub-plate mounting | 250 Kgf/cm² | 4 L/min. |
The 250 Kgf/cm² value is the maximum operating-pressure rating. Confirm the required pressure setting and the connected pilot-operated valve before selection.
Choose the mounting configuration
| Model | Configuration |
|---|---|
| YBT-01-250-1080 | Threaded connection |
| YBT-01-F-250-1080 | Threaded connection with panel mounting |
| YBG-01-250-1080 | Sub-plate mounting |
The F after the valve size identifies panel mounting. A separate F prefix identifies special seals for phosphate ester fluid; consult Yuken before ordering special seals.
Tank-line connection
The manufacturer requires the tank line to connect directly to the tank, separately from other valves’ tank lines. Review the complete installation instructions before use.
Selection support
Send the remote-control circuit details
Include the valve being controlled and the required mounting arrangement so the configuration can be checked before quotation.
- Full YBT-01 or YBG-01 model code
- Connected pilot-operated valve model
- Required pressure setting and circuit flow
- Threaded, panel or sub-plate mounting
- Tank-line arrangement, fluid and installation drawing
- Quantity and required timing
Remote-control relief-valve catalogue
Review size 01 specifications, model codes, mounting options and dimensions on the opening pages.
