Mounting suffix
FB specifies face mounting with back entry. SB specifies surface mounting with bottom entry.
Products / Yuken hydraulic products / Gauges and pressure switches / VI Series Visual Clogging Indicators
Yuken Gauges and pressure switches

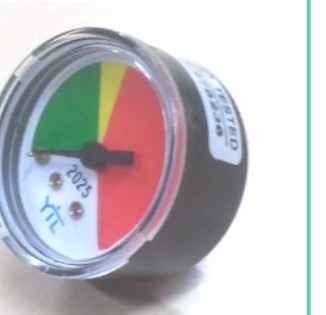

VI Series Visual Clogging Indicators
Colour-coded filter indicators for return-line and suction-line monitoring, with back-entry or bottom-entry mounting.
3 referencesTwo return types, one suction type
GreenCatalogue OK zone
YellowCatalogue warning zone
RedCatalogue danger zone
Function and model selection
VI indicators give a visual indication of filter condition. The pressure bands depend on the selected model, so the correct application and range must be specified together.
These are the catalogue's coloured indication bands, not interchangeable alarm settings for every filter. Match the indicator to the filter assembly and its operating requirements.
Use the catalogue alongside the details below, then send the complete model and application requirements for selection support.
Models and specifications
| Model reference | Application | Green (psi) | Yellow (psi) | Red (psi) |
|---|---|---|---|---|
| VI-R-1015-* | Return line | 0-10 | 10-15 | 15-60 |
| VI-R-2025-* | Return line | 0-20 | 20-25 | 25-60 |
| VI-S-0207-* | Suction line | -15 to 02 | 02-07 | 07-45 |
Source: Yuken accessories catalogue, Pub:03-2025, section starting at PDF page 16. Check the complete drawing and model designation before ordering.
Configuration and ordering
Replacement selection
Send a photograph of the coloured dial, model code and connection. Do not substitute a return-line indicator for a suction-line model based only on appearance.
Selection support
Share the complete requirement
Include the existing model and installation details for a replacement, or the required operating conditions for a new application.
- Complete instrument model and a nameplate photograph
- Required range, accuracy and measurement function
- Connection thread, mounting and orientation
- Electrical requirements where applicable
- Quantity and delivery location
Manufacturer catalogue
Open the VI Series Visual Clogging Indicators reference in the PDF hosted on Shree Hydraulics.
