SVP1
3.6-25.8cm³/rev. across nominal deliveries 3, 5, 7, 8, 10, 13, 14 and 26.

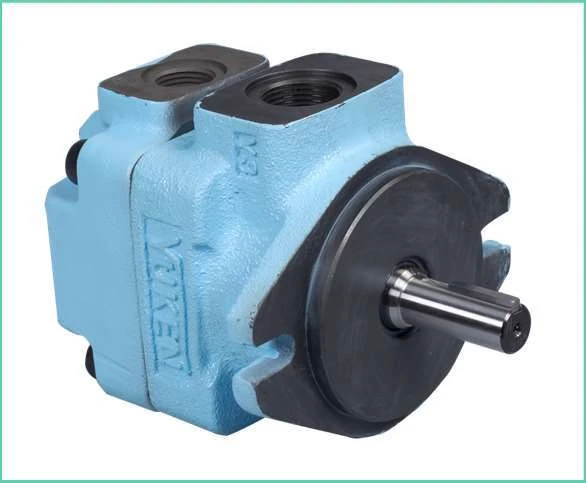

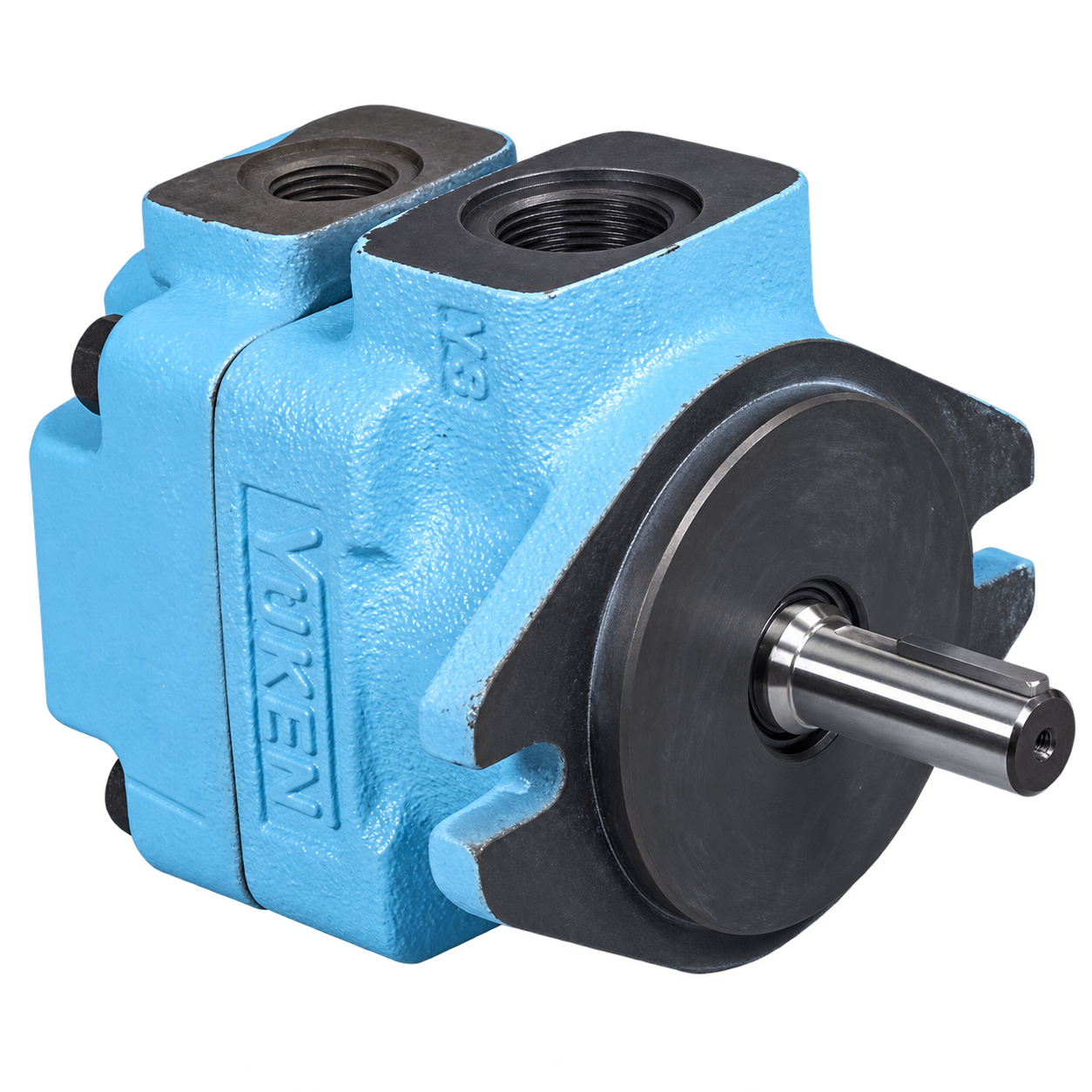

Yuken vane pumps
SVP Series single vane pumps
Catalogue-backed specifications for Yuken SVP1, SVP2 and SVP3 fixed-displacement single vane pumps.
3 familiesSVP1, SVP2 and SVP3
3.6-135cm³/rev. catalogue displacement range
23 sizeslisted nominal-delivery models
600-1800r/min. overall listed shaft-speed band
Fixed-displacement vane pumps for a broad delivery range
The SVP single-pump catalogue covers three frame families. SVP1 is the compact range, SVP2 extends the delivery range and SVP3 covers the larger displacements.
Maximum operating pressure, minimum speed and connection details depend on the selected family and nominal delivery. Confirm the complete model designation, fluid and duty before ordering.
Three families, one clear selection path
SVP2
10.4-42.6cm³/rev. across nominal deliveries 11, 17, 22, 25, 30, 33, 38, 43 and 47.
SVP3
47-135cm³/rev. across nominal deliveries 50, 58, 75, 92, 117 and 142.
| Series | Maximum operating pressure | Shaft-speed range | Approx. mass | Mounting |
|---|---|---|---|---|
| SVP1-3 | 125 Kgf/cm² | 750-1800 r/min.* | 6.2 Kg. flange; 7 Kg. foot | Flange or foot |
| SVP1-5 to SVP1-26 | 210 Kgf/cm² | 750-1800 r/min.* | 6.2 Kg. flange; 7 Kg. foot | Flange or foot |
| SVP2 | 210 Kgf/cm² | 600-1800 r/min.* | 16 Kg. flange; 18.7 Kg. foot | Flange or foot |
| SVP3 | 210 Kgf/cm² | 600-1800 r/min.* | 38.5 Kg. flange; 45.1 Kg. foot | Flange or foot |
* For speeds above 1500 r/min., the manufacturer catalogue instructs users to consult the factory. Values must be checked against the complete model designation.
Selection information
Details to confirm before quotation
Send the complete model code or a clear nameplate photograph. If the designation is unavailable, include the existing installation and operating requirement.
- SVP1, SVP2 or SVP3 and nominal delivery
- Flange or foot mounting
- Clockwise or anticlockwise rotation, viewed from the shaft end
- Pipe connection type where applicable
- Suction and discharge port positions
- Hydraulic fluid, pressure, shaft speed and quantity
Download the SVP Series single-pump catalogue
Review the official Yuken India document for model coding, dimensions, performance curves, cartridge kits and seals.
Send your SVP single-pump requirement
Include the complete model, nominal delivery, quantity and operating details. A clear nameplate photograph can help with identification.
