PVR1050
PVR1T + PVR50Small-pump nominal deliveries: 4, 6, 8, 10, 12, 15 and 17. Large-pump nominal deliveries: 13, 20, 26, 30, 36, 39, 45 and 51.
Yuken vane pumps

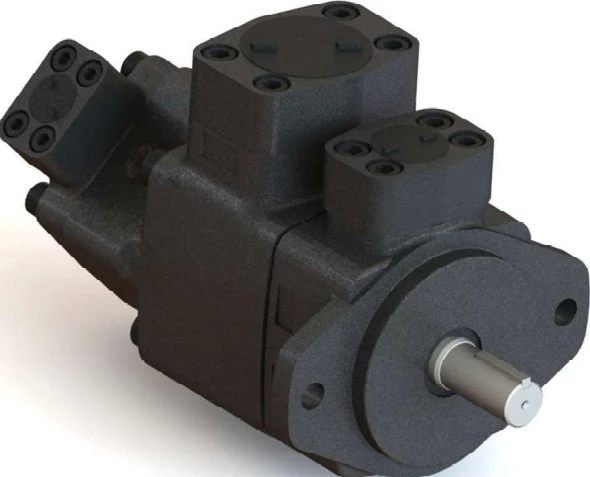

PVR Series double vane pumps
Catalogue-backed information for Yuken PVR1050 and PVR50150 fixed-displacement double vane pumps.
2 familiesPVR1050 and PVR50150
210kgf/cm² listed maximum operating pressure
600-1800r/min. listed shaft-speed range
2 delivery portsFor separate or common circuits
Two pump sections driven by one common shaft
PVR Series double vane pumps combine two fixed-displacement PVR single-pump sections in tandem within one housing. Each section has a separate delivery port, allowing the flows to supply separate circuits or a common circuit.
The PVR1050 combines PVR1T and PVR50 sections. The larger PVR50150 combines PVR50 and PVR150 sections and is identified in the Yuken catalogue for mobile applications.
Choose the combination for the required delivery range
PVR50150
PVR50 + PVR150Small-pump nominal deliveries: 13, 20, 26, 30, 36, 39, 45 and 51. Large-pump nominal deliveries: 60, 70, 90, 110, 140 and 170.
| Series | Maximum operating pressure | Shaft-speed range | Approx. mass | Mounting |
|---|---|---|---|---|
| PVR1050 | 210 kgf/cm² | 600-1800 r/min. | 17.7 kg flange; 20.5 kg foot | Flange or foot |
| PVR50150 | 210 kgf/cm² | 600-1800 r/min.* | 42.5 kg flange; 49 kg foot | Flange or foot |
* For PVR50150 speeds above 1500 r/min., the manufacturer catalogue instructs users to consult the factory. Values are transcribed from the available Yuken India catalogue and must be checked against the complete model designation.
Selection information
Details to confirm before quotation
Send the complete model code or a clear nameplate photograph. If the designation is unavailable, include the required flow from both pump sections and the existing installation details.
- PVR1050 or PVR50150 series
- Nominal delivery for both pump sections
- Flange or foot mounting
- Clockwise or anticlockwise rotation, viewed from the shaft end
- Discharge and suction port positions
- Hydraulic fluid, operating pressure, shaft speed and quantity
Download the PVR Series double-pump catalogue
Review the official Yuken India document for model coding, dimensions, cartridge kits, seals and spare-parts information.
Send your PVR double-pump requirement
Include the complete model, both nominal deliveries, quantity and operating details. A clear nameplate photograph can help with identification.
