Rotation
R indicates clockwise rotation viewed from the shaft end. The catalogue advises consultation for anti-clockwise rotation.
Yuken vane pumps

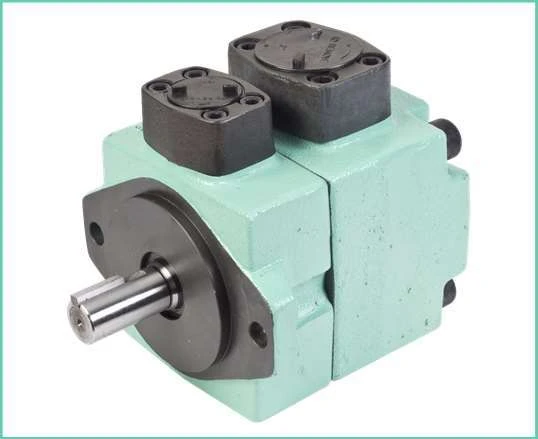

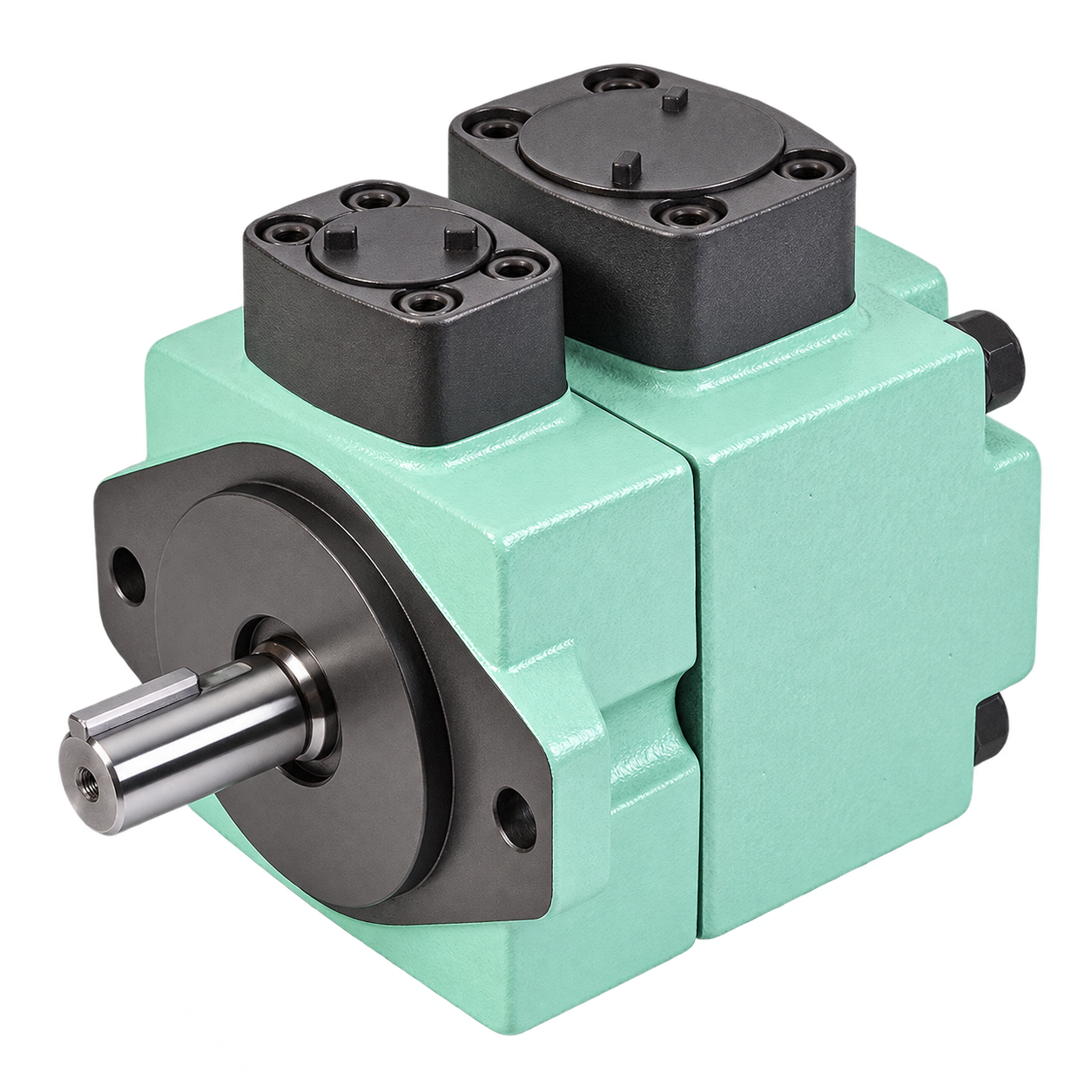

PV2R Series single vane pumps
Catalogue-backed information for Yuken PV2R2 and PV2R3 single vane pumps, with model identification and quotation support from Shree Hydraulics.
13listed PV2R2 and PV2R3 delivery sizes
26.6–115.6cm³/rev. geometric displacement range on this catalogue page
600r/min. minimum listed shaft speed
2mounting options: flange or foot mounting
Product overview
Developed for low-noise operation
The Yuken PV2R Series single vane pumps are described in the manufacturer catalogue as a low-noise pump range for industrial hydraulic applications. The main internal parts are arranged as a cartridge kit to reduce replacement and maintenance downtime.
This page covers the PV2R2 and PV2R3 groups shown in the available catalogue. Confirm the complete model designation, hydraulic fluid and operating conditions before ordering.
Catalogue specifications
PV2R2 and PV2R3 delivery sizes
| Frame | Nominal delivery models | Geometric displacement | Listed mounting | Approx. mass |
|---|---|---|---|---|
| PV2R2 | 26, 33, 41, 47, 53, 59, 65 | 26.6, 33.3, 41.3, 47.2, 52.5, 58.2, 64.7 cm³/rev. | Flange or foot mounting | 19.0 kg flange; 23.3 kg foot |
| PV2R3 | 52, 60, 66, 76, 94, 116 | 52.2, 59.6, 66.3, 76.4, 93.6, 115.6 cm³/rev. | Flange or foot mounting | 36.7 kg flange; 46.7 kg foot |
Values are transcribed from the available Yuken PV2R Series catalogue. Operating limits vary with model, fluid and operating condition. Confirm the full designation and suitability before ordering.
Mounting code
F indicates flange mounting and L indicates foot mounting in the model designation.
Port position
Discharge and suction port positions are encoded in the full model designation. Confirm both positions before ordering.
Cartridge and seal kits
The catalogue lists cartridge kits for each delivery model and seal kits for the PV2R2 and PV2R3 groups.
Selection information
Details to confirm before quotation
Send the complete model code or a clear nameplate photograph. If the model is not known, include the existing installation and operating requirement.
- PV2R2 or PV2R3 and complete model designation
- Nominal delivery size
- Flange or foot mounting
- Suction and discharge port positions
- Hydraulic fluid, shaft speed and operating pressure
- Quantity and required timing
Download the PV2R Series catalogue
Review the manufacturer document for model coding, dimensions, operating conditions, performance curves, cartridge kits and seal kits.
