HPV22M
HPV2 + HPV2Two HPV2 pump sections. Each section is selected from 10.8 to 100.0 cm³/rev.
Yuken vane pumps

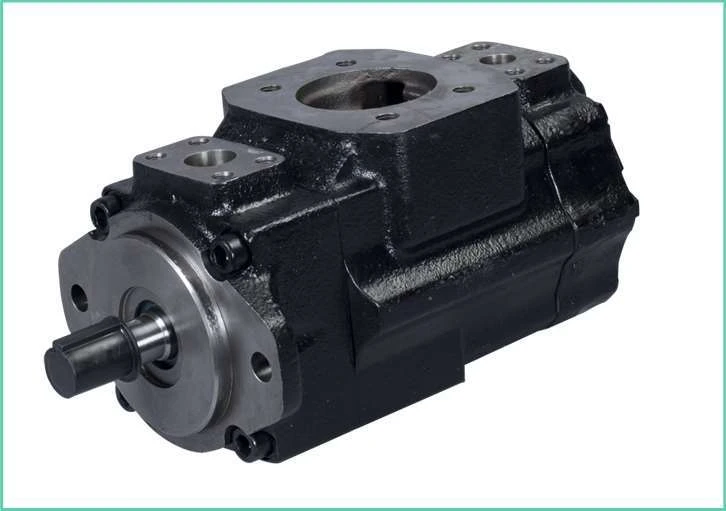

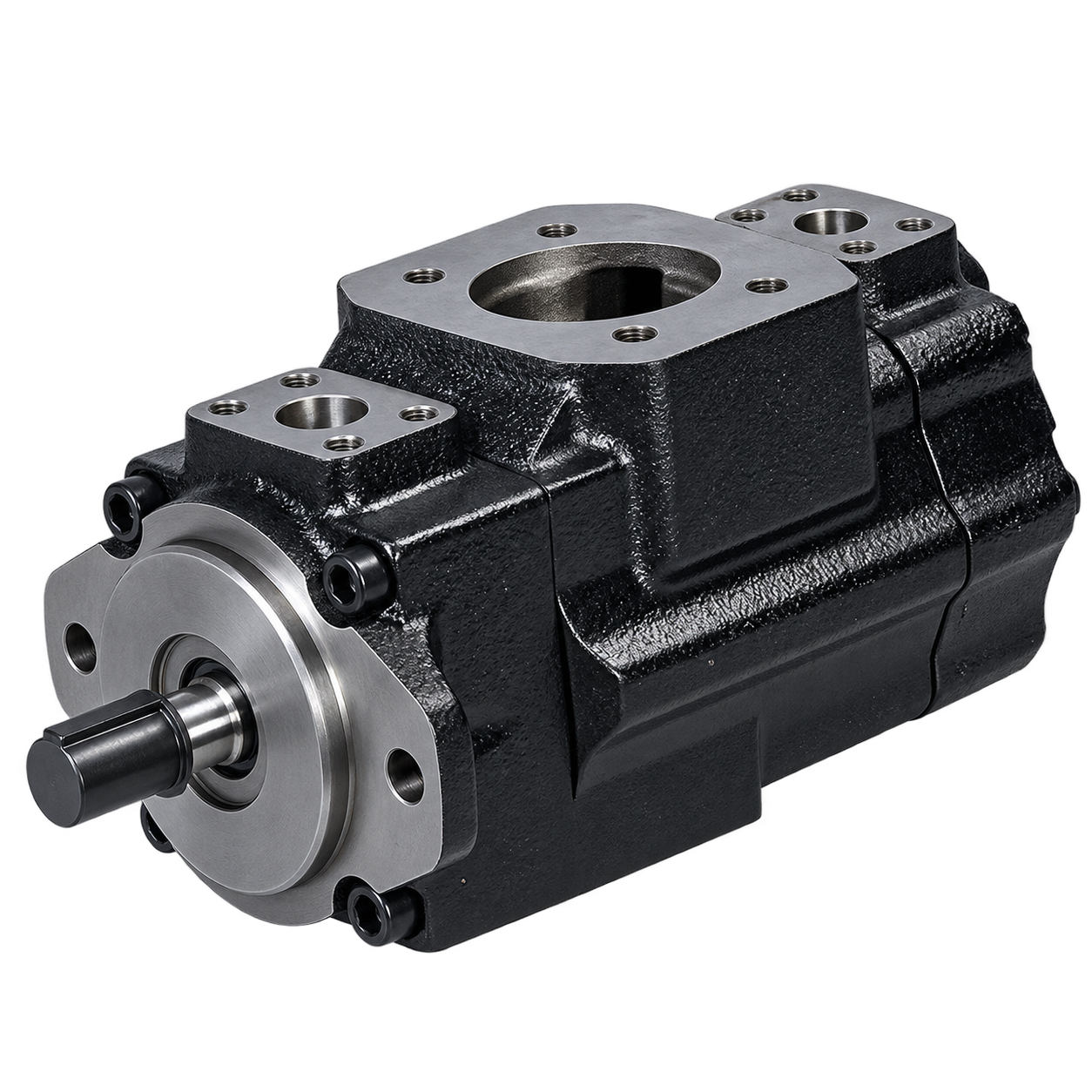

HPV Series double vane pumps
Catalogue-backed specifications for Yuken HPV22M and HPV32M high-pressure, high-speed double vane pumps.
2 familiesHPV22M and HPV32M
2 sectionsseparate discharge ports in one housing
10.8-190.5cm³/rev. listed section displacement range
400-2800r/min. overall listed shaft-speed band
Two pump sections driven by a common shaft
HPV double pumps combine two single-pump sections in tandem within one housing. Fluid from the two separate discharge ports can be supplied to separate or common circuits.
HPV22M combines two HPV2 sections. HPV32M combines one HPV3 large-volume section with one HPV2 small-volume section. Pressure and speed limits depend on the selected combination.
Choose the double-pump combination
HPV32M
HPV3 + HPV2One HPV3 large-volume section from 47.6 to 190.5 cm³/rev. with one HPV2 small-volume section from 10.8 to 100.0 cm³/rev.
| Series | Maximum operating pressure | Shaft-speed range | Approx. mass | Mounting |
|---|---|---|---|---|
| HPV22M | 140, 210 or 280 Kgf/cm², depending on section and nominal delivery | 400-2800 r/min., depending on nominal delivery | 26.0 Kg. flange; 29.3 Kg. foot | Flange or foot |
| HPV32M | Up to 275 Kgf/cm², with model-dependent section limits* | 800-2500 r/min., with 2200 r/min. maximum for specified large-volume series | 41.1 Kg. flange; 51.1 Kg. foot | Flange or foot |
* The HPV32M catalogue specifies 210 Kgf/cm² for small-volume series 28 and 31, 210 Kgf/cm² for large-volume series 50, and 120 Kgf/cm² intermittent or 80 Kgf/cm² continuous for large-volume series 61. Other large-volume pumps are limited to 240 Kgf/cm². Confirm both pump sections before selection.
Selection information
Details to confirm before quotation
Provide the complete double-pump code or a clear nameplate photograph. Both pump sections and their operating conditions are required.
- HPV22M or HPV32M
- Nominal delivery for both pump sections
- Flange or foot mounting
- Clockwise or anti-clockwise rotation, viewed from the shaft end
- Both discharge port positions and suction port position
- Mounting and connection variable
- Keyed or splined shaft type
- Pressure, shaft speed, hydraulic fluid and quantity
Download the HPV Series double-pump catalogue
Review the official Yuken India document for model coding, dimensions, section combinations, cartridge kits and seal information.
Send your HPV double-pump requirement
Include the complete model, both section sizes, quantity and operating details.
