Mounting bolts
Replace the starred field with U for UNC socket-head cap screws or M for metric socket-head cap screws.
Yuken Pipe and pump flanges

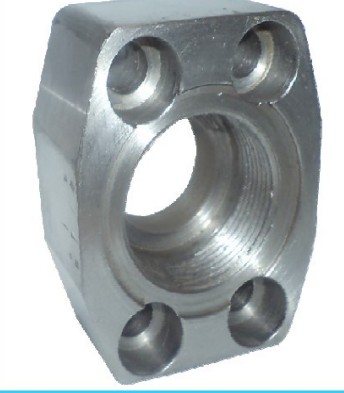

HPV-F Series Pump Flanges
Threaded delivery-port flanges for specified HPV pumps, with BSP.F ports and metric or UNC mounting-bolt options.
7 port sizes3/4 to 3 inches BSP.F
U / MUNC or metric bolts
TThreaded-port code
Design 10Model suffix
Function and model selection
The HPV-F reference sheet lists threaded delivery-port flanges for HPV pump configurations. Port size and mounting-bolt type are separate model fields.
Based on YUS-I-028 32, Pub:06-2019. Maximum operating pressure varies with connection and size; confirm the current drawing and pump interface before ordering.
Use the catalogue alongside the details below, then send the complete model and application requirements for selection support.
Models and specifications
| Size code | Port size (BSP.F) | Model pattern |
|---|---|---|
| 0.75 | 3/4" | HPV-F-0.75-*-T-10 |
| 1 | 1" | HPV-F-1-*-T-10 |
| 1.25 | 1.25" | HPV-F-1.25-*-T-10 |
| 1.5 | 1.5" | HPV-F-1.5-*-T-10 |
| 2 | 2" | HPV-F-2-*-T-10 |
| 2.5 | 2.5" | HPV-F-2.5-*-T-10 |
| 3 | 3" | HPV-F-3-*-T-10 |
Source: linked manufacturer reference sheet, starting at PDF page 1. Check the complete drawing and model designation before ordering.
Configuration and ordering
Pump and port
Send the complete HPV pump designation, delivery-port size and mounting dimensions. This flange sheet does not establish compatibility with every pump carrying an HPV name.
Selection support
Share the complete requirement
Include the existing model and installation details for a replacement, or the required operating conditions for a new application.
- Complete pump or valve model and port location
- Flange size, thread standard and connection type
- Bolt spacing, thread and mounting-face dimensions
- Operating pressure, hydraulic fluid and seal requirement
- Quantity and delivery location
Manufacturer catalogue
Open the HPV-F Series Pump Flanges reference in the PDF hosted on Shree Hydraulics.
