Pressure ranges
For size 06: B 8–70, C 12–140 and H 15–210 Kgf/cm². For size 10: B 9–70, C 12–140 and H 15–210 Kgf/cm².
E Series secondary pressure control

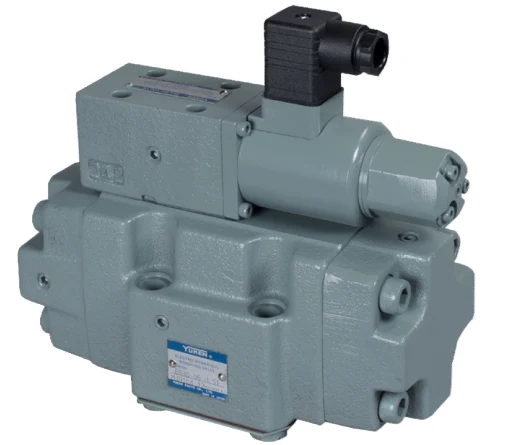

ERBG relieving and reducing valves
Compare reducing-flow and relieving-flow ratings for the 06 and 10 sizes.
250 Kgf/cm²Maximum operating pressure
06 / 10Valve sizes
100 / 250Maximum flow, L/min.
10ΩCoil resistance
Function and model selection
ERBG combines a proportional pilot relief valve with a reducing valve that includes a relief function. The electrical input controls secondary pressure, while the relief function allows pressure reduction on the controlled side.
Compare reducing-flow and relieving-flow ratings for the 06 and 10 sizes.
Use the model comparisons below with the linked manufacturer catalogue. Send the complete designation and application details for selection support.
Model comparison
| Model | Maximum flow, L/min. | Maximum relieving flow, L/min. |
|---|---|---|
| ERBG-06 | 100 | 35 |
| ERBG-10 | 250 | 15 |
Relieving-flow figures are measured at 140 Kgf/cm² differential pressure between the secondary-pressure and tank ports.
Configuration and ordering
Model and amplifier
The catalogue lists design 51 and sub-plate mounting. Specify the secondary-pressure range, complete model designation and applicable amplifier.
Selection support
Send the complete control requirement
Include the existing model label and circuit or wiring details so the valve and electronics can be checked together.
- Complete valve model and design number
- Operating pressure and required flow range
- Command signal and electrical supply
- Amplifier, sensor or feedback configuration
- Mounting details and circuit drawing
- Nameplate photograph and quantity
Manufacturer catalogue
Specifications, model designations, installation drawings and electrical details for ERBG relieving and reducing valves.
