Read the element code
E identifies a filter element, P the pressure-line type and F inorganic fibreglass media. Retain the filtration and design-number fields when requesting a spare.
Products / Yuken hydraulic products / Hydraulic filters and elements / EPF Series Pressure Line Filter Elements
Yuken Hydraulic filters and elements
EPF Series Pressure Line Filter Elements
Replaceable inorganic fibreglass elements for pressure-line filtration, with seven dimensional size groups.
7 sizesEPF-30 to EPF-500
3 / 5 / 10 µmFiltration options
FibreglassF element-media designation
Design 20Dimensional-table reference
Function and model selection
EPF identifies a pressure-line filter element, not a complete filter housing. Use the element's full designation, dimensions and the matching housing data to identify a replacement.

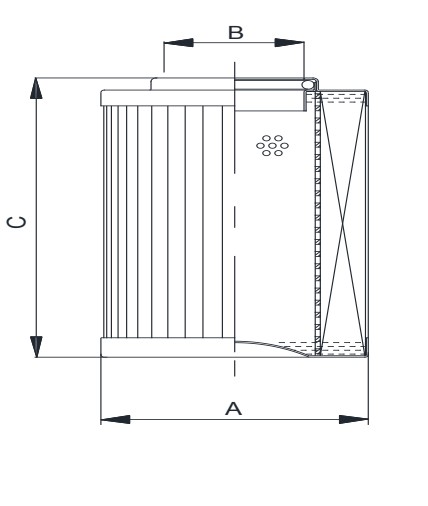

Dimensions refer to the EPF drawing on catalogue page 30. Nominal-flow entries differ between the element and housing sections for some sizes; confirm flow against the selected housing and pressure-drop curve.
Use the catalogue alongside the details below, then send the complete model and application requirements for selection support.
Models and specifications
| Element model | A (mm) | B (mm) | C (mm) |
|---|---|---|---|
| EPF-30-*-20 | 35 | 12.5 | 93 |
| EPF-60-*-20 | 47 | 22.4 | 84 |
| EPF-110-*-20 | 47 | 22.4 | 153 |
| EPF-160-*-20 | 69 | 34.2 | 115 |
| EPF-240-*-20 | 69 | 34.2 | 173 |
| EPF-330-*-20 | 90.5 | 48.2 | 162 |
| EPF-500-*-20 | 90.5 | 48.2 | 253 |
Source: Yuken accessories catalogue, Pub:03-2025, section starting at PDF page 27. Check the complete drawing and model designation before ordering.
Configuration and ordering
Previous references
For an older YFE-PFG element, send the complete code and dimensions. The catalogue includes an interchangeability note, but the exact replacement should be confirmed before ordering.
Selection support
Share the complete requirement
Include the existing model and installation details for a replacement, or the required operating conditions for a new application.
- Complete housing and element model codes
- Required flow, filtration grade and indicator option
- Operating pressure, temperature and hydraulic fluid
- Mounting dimensions and process connections
- Existing component photographs and quantity
Manufacturer catalogue
Open the EPF Series Pressure Line Filter Elements reference in the PDF hosted on Shree Hydraulics.
