Model options
Specify EDG-01, pressure range, general-use or vent-control arrangement, safety-valve option and orifice designations.
E Series proportional pressure control

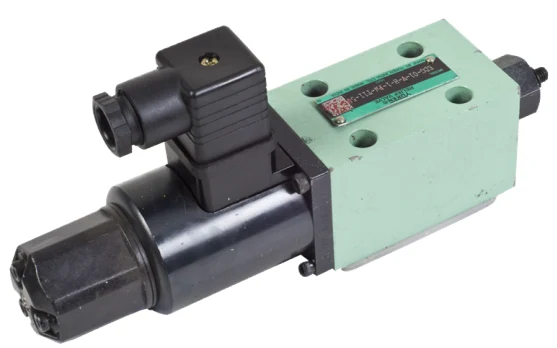

EDG pilot relief valves
Compare pressure ranges and safety-valve options for low-flow pilot pressure control.
250 Kgf/cm²Maximum operating pressure
0.3–2 L/min.Flow range
10ΩCoil resistance
B / C / HPressure-range options
Function and model selection
EDG-01 combines a proportional DC solenoid with a direct-acting relief valve. Input current controls pressure for low-flow circuits or the pilot stage of a proportional hydraulic control valve.
Compare pressure ranges and safety-valve options for low-flow pilot pressure control.
Use the model comparisons below with the linked manufacturer catalogue. Send the complete designation and application details for selection support.
Model comparison
| Pressure code | Adjustment range, Kgf/cm² | Rated current |
|---|---|---|
| B | 5–70 | 800 mA |
| C | 10–160 | 900 mA |
| H | 12–250 | 950 mA |
These ratings apply to the EDG-01 design shown in the linked catalogue. Maximum tank-line back pressure is 2 Kgf/cm².
Configuration and ordering
Amplifier and circuit
Use an applicable proportional amplifier. Vent-control applications need the circuit and pipe arrangement checked against the manufacturer instructions.
Selection support
Send the complete control requirement
Include the existing model label and circuit or wiring details so the valve and electronics can be checked together.
- Complete valve model and design number
- Operating pressure and required flow range
- Command signal and electrical supply
- Amplifier, sensor or feedback configuration
- Mounting details and circuit drawing
- Nameplate photograph and quantity
Manufacturer catalogue
Specifications, model designations, installation drawings and electrical details for EDG pilot relief valves.
Enquire about EDG pilot relief valves
Send your model code and application details to Shree Hydraulics in Belagavi for selection and quotation enquiries across India.
