Pressure and safety options
Design 11 uses C and H pressure ranges up to 140 and 210 Kgf/cm². Design 51 uses C and H ranges up to 160 and 250 Kgf/cm², with safety-valve options.
E Series pressure control

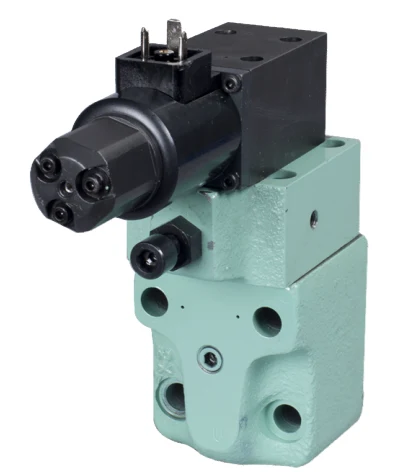

EBG proportional relief valves
Identify the design number before comparing pressure and flow ratings.
03 / 06 / 10Sizes across the catalogue
11 / 51Separate design ranges
10ΩCoil resistance
PressureProportional relief control
Function and model selection
EBG proportional relief valves regulate system pressure through the electrical command to the proportional solenoid. The catalogue contains design 11 and design 51 valves with different ratings and mounting details.
Identify the design number before comparing pressure and flow ratings.
Use the model comparisons below with the linked manufacturer catalogue. Send the complete designation and application details for selection support.
Model comparison
| Model and design | Pressure limit, Kgf/cm² | Catalogue flow, L/min. |
|---|---|---|
| EBG-03, design 11 | 210 | 80 rated |
| EBG-06, design 11 | 210 | 170 rated |
| EBG-03, design 51 | 250 | 100 maximum |
| EBG-06, design 51 | 250 | 200 maximum |
| EBG-10, design 51 | 250 | 400 maximum |
Rated and maximum flow are reproduced as separately defined in the catalogue. Design 51 has a minimum flow of 3 L/min.; minimum adjustable pressure depends on the flow curve.
Configuration and ordering
Replacement selection
Send the complete model code, including design number. Confirm the mounting drawing, pressure range and amplifier rather than selecting by EBG size alone.
Selection support
Send the complete control requirement
Include the existing model label and circuit or wiring details so the valve and electronics can be checked together.
- Complete valve model and design number
- Operating pressure and required flow range
- Command signal and electrical supply
- Amplifier, sensor or feedback configuration
- Mounting details and circuit drawing
- Nameplate photograph and quantity
Manufacturer catalogue
Specifications, model designations, installation drawings and electrical details for EBG proportional relief valves.
