Products / Yuken hydraulic products / DSG-01 directional valves
Yuken directional controls

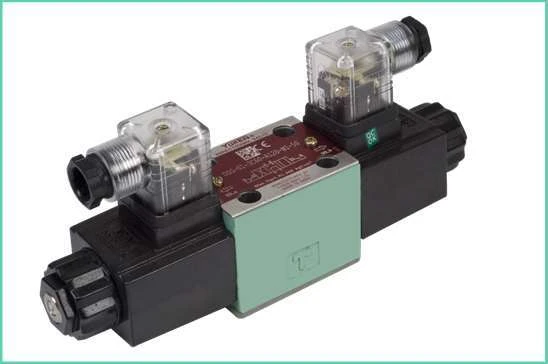

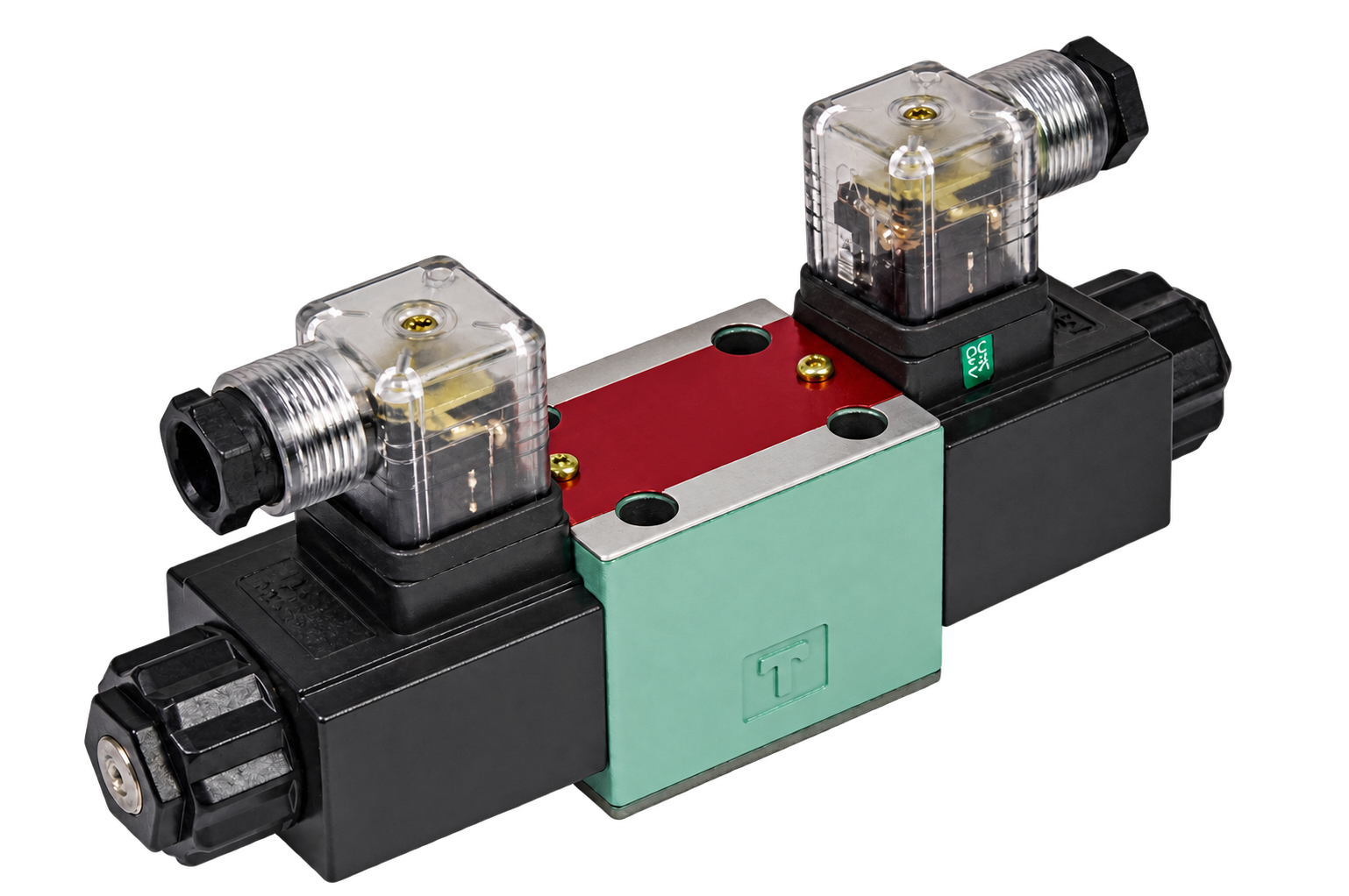

DSG-01 solenoid operated directional valves
Technical information for Yuken DSG-01 Series standard, shockless and power-saver valves, with model identification and quotation support.
63 L/min.maximum listed ceiling flow for standard DSG-01 models
315 kgf/cm²maximum listed operating pressure for standard DSG-01 models
40 L/min.maximum listed ceiling flow for shockless models
1/8DSG-01 nominal valve size in the catalogue
Product overview
Multiple spool and solenoid configurations
The DSG-01 50 Series includes standard valves for high-pressure, high-flow service and shockless valves intended to reduce noise associated with spool changeover and pipe vibration.
The catalogue lists three-position and two-position arrangements, multiple spool functions, AC, DC and rectified coil options, terminal-box and plug-in connector variants, and optional manual-override configurations.
Catalogue specifications
Series comparison
| Valve type | Representative models | Maximum listed flow | Maximum listed operating pressure | Maximum T-line back pressure |
|---|---|---|---|---|
| Standard | DSG-01-3C※-※-50, DSG-01-2D2※-※-50, DSG-01-2B※-※-50 | 63 L/min. | 315 kgf/cm² | 160 kgf/cm² for spool type 60; 120 kgf/cm² for R-type solenoid |
| Shockless | S-DSG-01-3C※-※-50, S-DSG-01-2B2-※-50 | 40 L/min. | 160 kgf/cm² | 160 kgf/cm² |
| Power saver | PS-DSG-01-3C※-※-50, PS-DSG-01-2B※-※-50, PS-DSG-01-2D※-※-50 | 40 L/min. | 250 kgf/cm² | 160 kgf/cm² |
Maximum flow is a ceiling value and varies with spool type and operating condition. Confirm the complete designation and the relevant catalogue flow table before ordering.
Valve arrangements
Three-position spring-centred, two-position no-spring detented and two-position spring-offset arrangements are identified.
Sub-plates
Listed DSGM-01 sub-plates include 1/8, 1/4 and 3/8 BSP.F thread options.
Ingress protection
The catalogue states IP65-equivalent dust and water resistance, with higher customised protection available on request through Yuken.
Selection information
Details to confirm before quotation
Send the complete model code or a clear valve nameplate photograph. Spool function, electrical specification and connection style must be identified correctly.
- Standard, shockless or power-saver type
- Three-position or two-position arrangement
- Spool type and spring arrangement
- Coil type and voltage
- Terminal box or plug-in connector
- Sub-plate requirement, quantity and timing
Download the DSG-01 Series catalogue
Review the manufacturer document for model coding, spool functions, flow limits, pressure-drop curves, dimensions, coils, connectors and spare parts.
Send your DSG-01 requirement
Include the complete model, coil voltage, spool function and quantity. A clear nameplate photograph can help with identification.
