Roller position
The model designation provides a normal position with no suffix, an R position, and a Y position for DCG-01 only. Check the roller orientation drawing before ordering.
Yuken cam operated directional valves
DCG Series directional valves

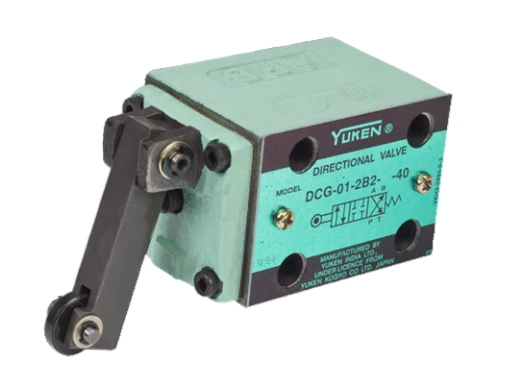

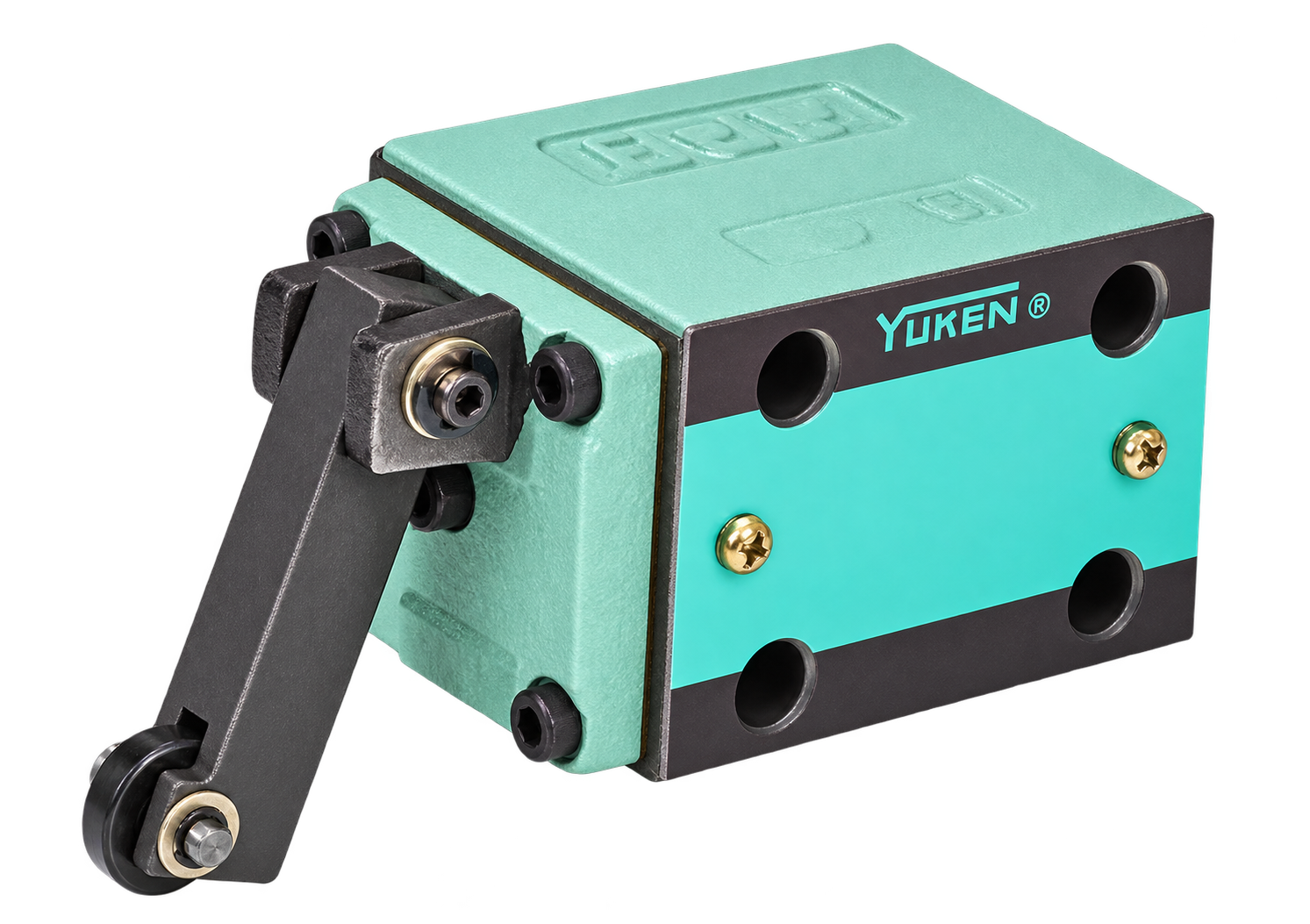

Compare DCG-01 and DCG-03 valves, then confirm the spool function, roller position and cam travel for your requirement.
2 sizesDCG-01 and DCG-03
Cam operatedMechanical actuation of the spool
30 / 100L/min flow ceilings by size
2 positionsSpring-offset arrangement
Switch flow through cam movement
A cam depresses the valve spool through the roller mechanism to change the direction of oil flow. The DCG Series uses sub-plate mounting and a two-position, spring-offset arrangement.
The catalogue lists spool types 2, 3 and 8. Select the circuit symbol and roller position together, then check the oil-flow connections at the extended and depressed positions.
For a replacement, send the full model code and photographs showing the nameplate, roller orientation and mounting arrangement.
Compare DCG-01 and DCG-03
| Series | Maximum flow | Maximum operating pressure | Maximum T-line pressure* |
|---|---|---|---|
| DCG-01-2B※-40 | 30 L/min | 210 Kgf/cm² | 70 Kgf/cm² |
| DCG-03-2B※-50 | 100 L/min | 250 Kgf/cm² | 100 Kgf/cm² |
Maximum flow is the catalogue ceiling for normal valve changeover. *For valve type 2B8, port T acts as a drain and must connect directly to the reservoir. Its maximum allowable back pressure is 3.5 Kgf/cm².
Confirm roller and spool configuration
Spool type
Types 2B2, 2B3 and 2B8 have different flow connections during roller travel. Use the catalogue diagrams to confirm the required extended, intermediate and depressed conditions.
Check the cam profile, roller travel, mounting dimensions and actuation-force chart for the selected size. Consult Yuken before specifying special seals.
Selection support
Send the complete DCG requirement
Share the mechanical arrangement and hydraulic conditions so the catalogue configuration can be checked before quotation.
- Full DCG model code and nameplate photograph
- Spool type and required flow connections
- Roller position and cam travel details
- Required flow, operating pressure and tank back pressure
- Mounting interface and sub-plate requirement
- Hydraulic fluid, quantity and required timing
DCG technical catalogue
Review model codes, roller positions, circuit diagrams, cam travel and mounting dimensions.
Enquire about a DCG valve
Send your model code, operating conditions and quantity to Shree Hydraulics.
