Internal drain
No drain suffix in the model code. The catalogue normally uses this type when outlet P1 connects directly to the tank during reverse flow.
Yuken pilot controlled check valves

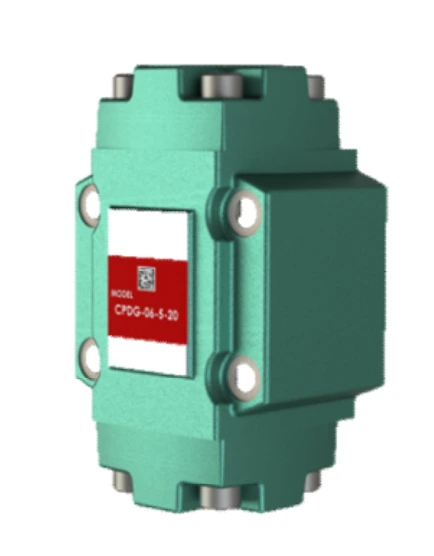

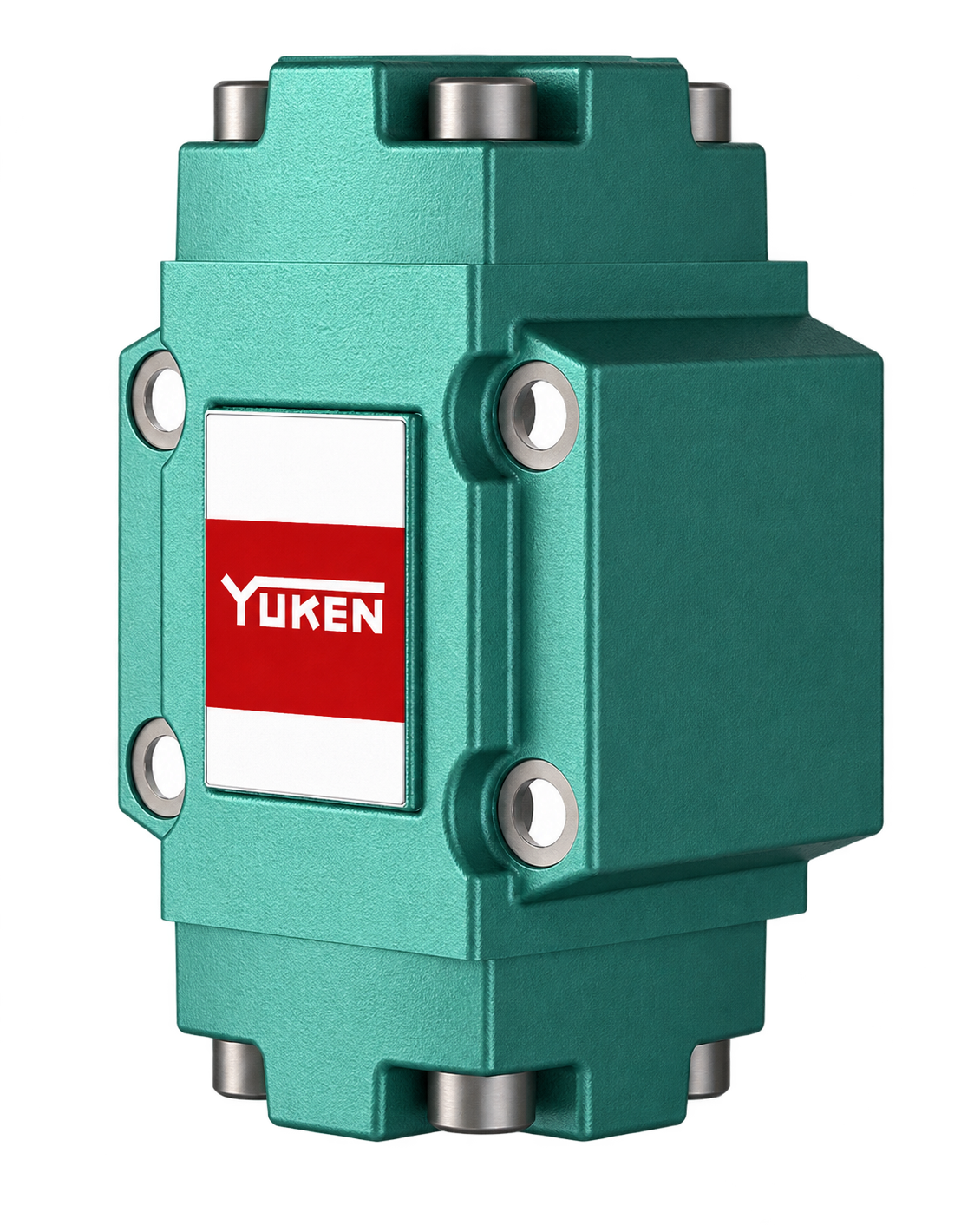

CPG and CPDG pilot controlled check valves
Compare standard and decompression types in size 06. Confirm the drain arrangement, cracking pressure and pilot conditions for your circuit.
2 typesCPG and decompression-type CPDG
Size 06Sub-plate mounting
250 Kgf/cm²Maximum operating pressure
2 drain optionsInternal or external drain
Release reverse flow with pilot pressure
These check valves permit flow in one direction and block reverse flow until pilot pressure opens the valve. Cracking pressure applies to opening in the free-flow direction.
CPG identifies the pilot controlled check valve. CPDG identifies the decompression type. Both catalogue variants use size 06 sub-plate mounting.
The pilot pressure required for reverse flow depends on circuit pressure and valve type. Check the manufacturer’s pilot-pressure chart for the selected configuration.
Catalogue specifications
| Family | Rated flow* | Maximum operating pressure | Mounting |
|---|---|---|---|
| CPG-06 / CPDG-06 | 125 L/Min. | 250 Kgf/cm² | Sub-plate |
*The catalogue gives an approximate rated flow at a free-flow pressure drop of no more than 3 Kgf/cm², fluid specific gravity of 0.85, viscosity of 20 cSt and reference cracking pressure of 0.4 Kgf/cm². This reference condition is separate from the model-code options below. Confirm the selected valve against the catalogue curves.
Choose the drain arrangement
External drain
The E code identifies external drain. The catalogue requires this arrangement when back pressure acts at outlet P1 during reverse flow.
Use the manufacturer’s circuit diagrams to identify P1, P2, pilot and drain connections. Confirm the actual circuit before selecting the drain type.
Cracking-pressure options
| Model-code option | Cracking pressure |
|---|---|
| 5 | 0.35 Kgf/cm² |
| 30 | 2.0 Kgf/cm² |
| 50 | 3.5 Kgf/cm² |
| 75 | 5.0 Kgf/cm² |
These are free-flow opening settings, not the pilot pressure needed to open reverse flow. Consult Yuken before specifying special seals for phosphate ester fluid.
Sub-plate options
| Sub-plate model | Thread size |
|---|---|
| HGM-06-2080 | 3/4 BSP.F |
| HGM-06X-2080 | 1 BSP.F |
Specify the sub-plate separately in your enquiry and check the mounting dimensions in the catalogue.
Selection support
Send the full valve and circuit details
Include the model designation and operating conditions so the pilot and drain configuration can be checked before quotation.
- CPG or CPDG model code and nameplate photograph
- Internal or external drain arrangement
- Required flow and operating pressure
- Available pilot pressure and reverse-flow conditions
- Cracking pressure, fluid and sub-plate requirement
- Quantity and required timing
CPG and CPDG technical catalogue
Review model codes, pilot-pressure charts, circuit diagrams and mounting dimensions.
