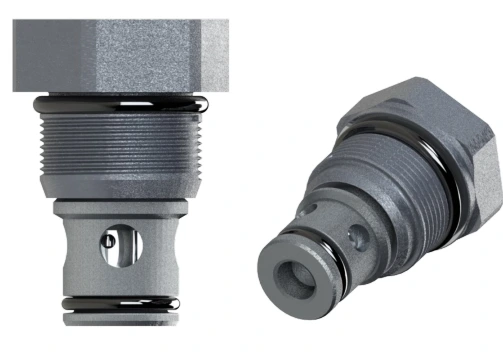

Yuken cartridge type check valves
CK-08 and CK-10 cartridge check valves
Compare two screw-in cartridge check valves. Confirm the rated flow, cracking pressure and cavity dimensions for your manifold.
One-way flow in a screw-in cartridge
The CK range uses a direct acting poppet in a screw-in cartridge. It allows flow in one direction and blocks flow in the reverse direction.
CK-08 and CK-10 have different rated flows and cavity dimensions. Select the complete model code and confirm the manifold drawing before ordering a new valve or replacement.
The specifications below follow Yuken’s EI-V4-0266-0 datasheet dated 1 April 2025.
Compare CK-08 and CK-10
| Model | Rated flow | Maximum operating pressure | Mass |
|---|---|---|---|
| CK-08-05-10 | 40 L/min. | 180 Kgf/cm² | 0.07 Kg |
| CK-10-05-10 | 80 L/min. | 180 Kgf/cm² | 0.09 Kg |
Both models use cracking-pressure code 05, corresponding to 0.3 Kgf/cm². The datasheet pressure-drop curves use oil viscosity of 35 cSt and specific gravity of 0.850. Review the curves for the required flow.
Match the cartridge to its cavity
| Model | Cavity reference | Thread shown in datasheet | Across flats |
|---|---|---|---|
| CK-08-05-10 | Equivalent to SAE-08 | 3/4 - 16 UNF-2B | 22 mm |
| CK-10-05-10 | Equivalent to SAE-10 | 7/8 - 14 UNF-2B | 27 mm |
The cavity reference alone does not confirm replacement suitability. Compare all dimensions, tolerances and port positions in the manufacturer drawing. Yuken notes that design numbers may change from 10 to 19 while the illustrated installation dimensions remain the same.
Selection support
Send the valve and manifold details
Share the complete model and cavity drawing so the size and installation can be checked before quotation.
- CK-08 or CK-10 full model code
- Manifold cavity drawing or existing valve photograph
- Required flow and operating pressure
- Cracking pressure and flow direction
- Hydraulic fluid and viscosity
- Quantity and required timing
CK-08 and CK-10 technical datasheet
Review the April 2025 ratings, pressure-drop curves, model codes and cavity drawings.
Enquire about CK cartridge check valves
Send your model code, cavity details and quantity to Shree Hydraulics.
