Connection code
The model table uses an omitted connection field for power cable and DC for DIN connector. Here DC denotes the connector option, not a DC supply voltage.
Yuken Hydraulic accessories

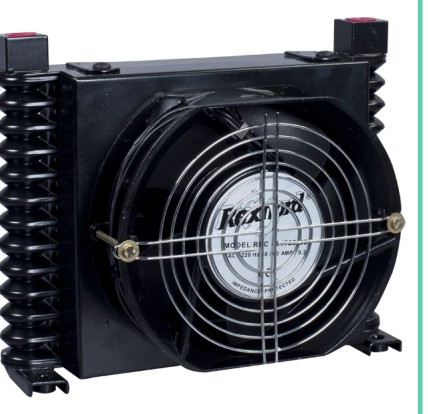

AMC Series Air-cooled Oil Coolers
Drain-line air cooling for variable displacement pump applications with constant oil flow up to 10 lpm.
10 lpmMaximum flow
10 Kgf/cm²Maximum operating pressure
60 °CMaximum operating temperature
230 V ACCatalogue supply voltage
Function and model selection
AMC-217-15 is intended for drain-line applications. Confirm the permitted pump case-drain back pressure and cooler pressure drop as part of the application review.
The catalogue does not state a single universal heat-rejection capacity for all operating conditions. Provide oil inlet temperature, required outlet temperature, ambient conditions and flow for selection.
Use the catalogue alongside the details below, then send the complete model and application requirements for selection support.
Models and specifications
| Parameter | Catalogue value |
|---|---|
| Model reference | AMC-217-15 |
| Supply voltage | 230 volts-Ac |
| Frequency | 50/60 Hz |
| Power consumption | 35-37 W |
| Air flow | 180-200 CFM |
| Approximate mass | 10.00 kg |
Source: Yuken accessories catalogue, Pub:03-2025, section starting at PDF page 26. Check the complete drawing and model designation before ordering.
Configuration and ordering
Application details
Send pump model, drain flow, oil type, ambient temperature and allowable back pressure. Use the catalogue pressure-drop curve for the specified duty.
Selection support
Share the complete requirement
Include the existing model and installation details for a replacement, or the required operating conditions for a new application.
- Complete model code and component photographs
- Required function and system operating conditions
- Mounting dimensions and connections
- Fluid, temperature and pressure where applicable
- Quantity and delivery location
Manufacturer catalogue
Open the AMC Series Air-cooled Oil Coolers reference in the PDF hosted on Shree Hydraulics.
