Water-cooled heat exchangers with corrugated stainless-steel plates and copper-fused construction. Compare the CA model references and confirm oil/water conditions before selection.

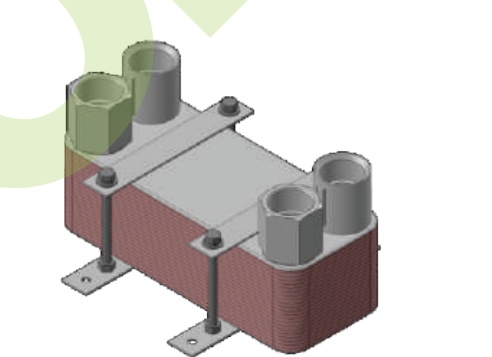

The catalogue describes a compact heat exchanger made from thin corrugated stainless-steel plates fused with copper in a vacuum process. The materials table specifies SS316 plates and copper fusing, with connector materials listed as CS / Brass / GI.
The catalogue gives range-level maximum working values of 31 Bar and up to 225°C. Confirm the selected model, fluid compatibility and permitted pressure/temperature combination with the manufacturer; these figures are not a duty guarantee for every installation.
Hydraulic and lubrication selection charts use different oil grades and temperature conditions. Supply the actual oil and cooling-water data rather than choosing a unit from dimensions or motor power alone.
On smaller screens, scroll the table sideways to view all columns.
| Model | Catalogue item code | A (mm) | B (mm) | C (mm) | Oil / water ports |
|---|---|---|---|---|---|
| CA-1020 | 0702-20-0.25 | 54.4 | 119.4 | 64.2 | G3/8" |
| CA-2020 | 1105-20-10 | 119 | 289 | 110.9 | G1" |
| CA-2030 | 1105-30-10 | 119 | 289 | 133.7 | G1" |
| CA-2050 | 1105-50-10 | 119 | 289 | 179.4 | G1" |
| CA-3030 | 1203-30-0.75 | 73 | 315 | 116.5 | G3/4" |
| CA-3040 | 1203-40-0.75 | 73 | 315 | 140.5 | G3/4" |
| CA-4020 | 1105-20-12.5 | 119 | 290 | 118.4 | G1-1/4" |
| CA-4030 | 1105-30-12.5 | 119 | 290 | 142.3 | G1-1/4" |
| CA-5020 | 2105-20-12.5 | 119 | 526 | 116.2 | G1-1/4" |
| CA-5030 | 2105-30-12.5 | 119 | 526 | 139 | G1-1/4" |
| CA-5040 | 2105-40-12.5 | 119 | 526 | 162 | G1-1/4" |
| CA-5050 | 2105-50-12.5 | 119 | 526 | 186 | G1-1/4" |
| CA-5060 | 2105-60-12.5 | 119 | 526 | 208 | G1-1/4" |
| CA-5070 | 2105-70-12.5 | 119 | 526 | 222 | G1-1/4" |
| CA-5080 | 2105-80-12.5 | 119 | 526 | 253.8 | G1-1/4" |
| CA-5090 | 2105-90-12.5 | 119 | 526 | 276.8 | G1-1/4" |
Source: CoolAce GFPT/01/07-26 catalogue, PDF page 4. A, B and C refer to the manufacturer's dimensional drawing, not installation clearances. Catalogue tolerances: A ±1 mm, B ±2 mm and C ±3%. Both oil and water connections are listed as BSP (F). Confirm the full drawing and selected connector material before ordering.
The quick-selection chart uses ISO VG32-VG68 oil, equal water/oil flow, 32°C entering water, 55°C system oil and 70% power-pack efficiency. The separate hydraulic performance curves use VG32 oil at 60°C inlet and water at 30°C, with a 1:1 flow ratio.
The quick-selection chart uses ISO VG100-VG320 oil, equal water/oil flow, 32°C entering water and 75°C system oil. The separate lubrication performance curves use VG220 oil at 75°C inlet and water at 30°C, with a 1:1 flow ratio.
Selection support
Include the existing model for a replacement, or the complete operating conditions for a new installation. Selection and quotation will be confirmed against your requirement.
Open the Gasket-free plate heat exchangers reference in the PDF hosted on Shree Hydraulics.
Contact Shree Hydraulics in Belagavi for product selection and quotation enquiries across India.
